Manufacturer: MEAN WELL
- SIP7 package with international standard pinout
- Operating temperature range -40 ~ +95°C
- Comply with IEC/UL62368-1 and LVD IEC60601-1
- Medical safety approved (1xMOPP/2xMOOP) according to
IEC60601-1 - Low patient leakage current <2uA
- Protections: Short circuit (Continuous)
6kVDC hight I/O isolation (Reinforced insulation) - 3-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Price from €4.30 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMDS01L-03NDC/DC module 1W 5V±10%/ 3.3V 0.303AOut of stock Warranty: €4.30€5.29Login to check your price MDS01L-03NDC/DC module 1W 5V±10%/ 3.3V 0.303AAvailability: Out of stockNet price:€4.30 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMDS01L-05NDC/DC module 1W 5V±10%/ 5V 0.2AOut of stock Warranty: €4.30€5.29Login to check your price MDS01L-05NDC/DC module 1W 5V±10%/ 5V 0.2AAvailability: Out of stockNet price:€4.30 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMDS01L-12NDC/DC module 1W 5V±10%/ 12V 0.084AOut of stock Warranty: €4.30€5.29Login to check your price MDS01L-12NDC/DC module 1W 5V±10%/ 12V 0.084AAvailability: Out of stockNet price:€4.30 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMDS01L-15NDC/DC module 1W 5V±10%/ 15V 0.067AOut of stock Warranty: €4.30€5.29Login to check your price MDS01L-15NDC/DC module 1W 5V±10%/ 15V 0.067AAvailability: Out of stockNet price:€4.30 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMDS01M-03NDC/DC module 1W 12V±10%/ 3.3V 0.303AOut of stock Warranty: €4.30€5.29Login to check your price MDS01M-03NDC/DC module 1W 12V±10%/ 3.3V 0.303AAvailability: Out of stockNet price:€4.30 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMDS01M-05NDC/DC module 1W 12V±10%/ 5V 0.2AOut of stock Warranty: €4.30€5.29Login to check your price MDS01M-05NDC/DC module 1W 12V±10%/ 5V 0.2AAvailability: Out of stockNet price:€4.30 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMDS01M-12NDC/DC module 1W 12V±10%/ 12V 0.084AOut of stock Warranty: €4.30€5.29Login to check your price MDS01M-12NDC/DC module 1W 12V±10%/ 12V 0.084AAvailability: Out of stockNet price:€4.30 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMDS01M-15NDC/DC module 1W 12V±10%/ 15V 0.067AOut of stock Warranty: €4.30€5.29Login to check your price MDS01M-15NDC/DC module 1W 12V±10%/ 15V 0.067AAvailability: Out of stockNet price:€4.30 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMDS01N-03NDC/DC module 1W 24V±10%/ 3.3V 0.303AOut of stock Warranty: €4.30€5.29Login to check your price MDS01N-03NDC/DC module 1W 24V±10%/ 3.3V 0.303AAvailability: Out of stockNet price:€4.30 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMDS01N-05NDC/DC module 1W 24V±10%/ 5V 0.2AOut of stock Warranty: €4.30€5.29Login to check your price MDS01N-05NDC/DC module 1W 24V±10%/ 5V 0.2AAvailability: Out of stockNet price:€4.30 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMDS01N-12NDC/DC module 1W 24V±10%/ 12V 0.084AOut of stock Warranty: €4.30€5.29Login to check your price MDS01N-12NDC/DC module 1W 24V±10%/ 12V 0.084AAvailability: Out of stockNet price:€4.30 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMDS01N-15NDC/DC module 1W 24V±10%/ 15V 0.067AOut of stock Warranty: €4.30€5.29Login to check your price MDS01N-15NDC/DC module 1W 24V±10%/ 15V 0.067AAvailability: Out of stockNet price:€4.30
Description

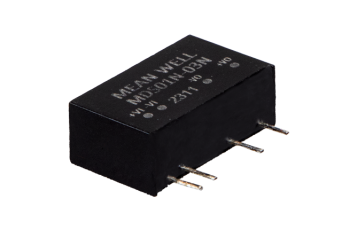

MDS01-N series are 1W isolated and unregulated module type medical grade DC-DC converter with SIP7 package. It features international standard pins, a high efficiency up to 84%, wide working temperature range -40~+95°C, 6KVDC I/P-O/P hight isolation voltage, short circuit protection, etc. The models account for different input voltage 5V/12V/24V+10%, and various output voltage, 3.3V/5V/12V/15V for single output , which are suitable for medical systems, ultra low leakage current or industrial control, telecommunication field, distributed power architecture, and so on.
Technical Specification
- MDS01-N: 1W Medical DC/DC Converter → Manufacturer documentation (specification, certificates, others)
| Model | Input | Output | Efficiency | Dimensions |
| MDS01L-03N | 5V+/-10% | 3.3VDC | 76% | 19.7x7.1x11.5mm |
| MDS01L-05N | 5V+/-10% | 5VDC | 79% | 19.7x7.1x11.5mm |
| MDS01L-12N | 5V+/-10% | 12VDC | 82% | 19.7x7.1x11.5mm |
| MDS01L-15N | 5V+/-10% | 15VDC | 84% | 19.7x7.1x11.5mm |
| MDS01M-03N | 12V+/-10% | 3.3VDC | 75% | 19.7x7.1x11.5mm |
| MDS01M-05N | 12V+/-10% | 5VDC | 79% | 19.7x7.1x11.5mm |
| MDS01M-12N | 12V+/-10% | 12VDC | 81% | 19.7x7.1x11.5mm |
| MDS01M-15N | 12V+/-10% | 15VDC | 83% | 19.7x7.1x11.5mm |
| MDS01N-03N | 24V+/-10% | 3.3VDC | 75% | 19.7x7.1x11.5mm |
| MDS01N-05N | 24V+/-10% | 5VDC | 79% | 19.7x7.1x11.5mm |
| MDS01N-12N | 24V+/-10% | 12VDC | 82% | 19.7x7.1x11.5mm |
| MDS01N-15N | 24V+/-10% | 15VDC | 81% | 19.7x7.1x11.5mm |
