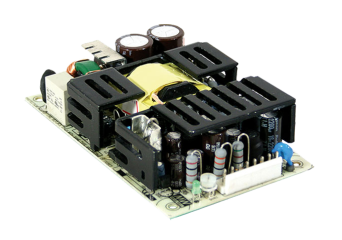

RPT-75
3 - output medical power supplies, PCB Open Frame type, with PFC function: RPT-75A, RPT-75B, RPT-75C, RPT-75D, RPT-7503
Manufacturer: MEAN WELL
Manufacturer: MEAN WELL
- input voltage 90-264VAC 120-370VDC
- protections: short circuit, overvoltage and overload protection
- adjustable output voltage in the range of -5 ~ + 10%
- cooling with open air circulation
- convection cooling power: 72W
- power with fan cooling: 100W
- working temperature -20 ~ + 70 ° C
- compliance with medical standards
- low leakage
- current small size
- 3-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Price from €24.30 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRPT-75Aopen frame power supply 75W 5V, 12V, -5VOut of stock Warranty: €24.30€29.89Login to check your price RPT-75Aopen frame power supply 75W 5V, 12V, -5VAvailability: Out of stockNet price:€24.30 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRPT-75Bopen frame power supply 75W 5V, 12V, -12VIn stockWarranty: €24.30€29.89Login to check your price RPT-75Bopen frame power supply 75W 5V, 12V, -12VAvailability:In stockNet price:€24.30 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRPT-75Copen frame power supply 75W 5V, 15V, -15VOut of stock Warranty: €24.30€29.89Login to check your price RPT-75Copen frame power supply 75W 5V, 15V, -15VAvailability: Out of stockNet price:€24.30 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRPT-75Dopen frame power supply 75W 5V, 24V, 12VOut of stock Warranty: €24.30€29.89Login to check your price RPT-75Dopen frame power supply 75W 5V, 24V, 12VAvailability: Out of stockNet price:€24.30 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRPT-7503open frame power supply 75W 3.3V, 5V, 12VOut of stock Warranty: €24.30€29.89Login to check your price RPT-7503open frame power supply 75W 3.3V, 5V, 12VAvailability: Out of stockNet price:€24.30
Description
The series of 2,3-output medical power supplies without housing is designed for use in medical applications, automation, electronics, telecommunications, etc. Compliance with medical standards guarantees a high degree of safety. The lack of an enclosure allows great freedom of installation. Small size, high quality and reliability make the power supplies perfect for installation in a powered device. The derived input and output connectors facilitate the connection of wires.
Technical Specification
-
RPT-75: 81~100W DETAILS
Model Output Tolerance Ripple & noise Efficiency Max power Dimension RPT-75A 5V, 0.6~8.0A
12V, 0.2~4.0A
-5V, 0.1~1.0A+/-2%
+/-6%
+/-5%80mV
120mV
120mV76% 93W 127x76.2x31mm RPT-75B 5V, 0.6~8.0A
12V, 0.2~4.0A
-12V, 0.1~1.0A+/-2%
+/-6%
+/-5%80mV
120mV
120mV77% 100W 127x76.2x31mm RPT-75C 5V, 0.6~8.0A
15V, 0.1~3.0A
-15V, 0.1~1.0A+/-2%
+/-8%
+/-5%80mV
150mV
150mV77% 100W 127x76.2x31mm RPT-75D 5V, 0.6~7.0A
24V, 0.1~2.0A
12V, 0.1~1.0A+/-2%
+/-8%
+/-8%80mV
200mV
120mV79% 95W 127x76.2x31mm RPT-7503 3.3V, 0.7~7.0A
5V, 0.0~8.0A
12V, 0.0~1.5A+/-4%
+/-6%
+10%,-6%80mV
120mV
120mV74% 81W 127x76.2x31mm
