- Supply voltage 90-264VAC, 250-400VDC
- Built-in CANBus communication protocol
- Programmable output voltage 15 ~115%
- Overvoltage category III (OVC III)
- Low leakage current ≤500μA
- Compliance with medical standards (2xMOPP)
- Operating temperature -40~85°C
- Remote on/off switch
- Additional "standby" output 12V
- DC OK connector, OTP alarm signal
-
protections: short circuit (SCP) / overload (OLP) /
overvoltage (OVP) / overheating (OTP)
- cooling with built-in fan <38dB
-
Compliance with standards
(medical IEC60601-1-2, building IEC60335-1,
industrial IEC61558-1/-2-16/61010-1, energy IEC62477-1)
- efficiency up to 92%
- operating altitude up to 5000 metres
- PCB protective coating
- 5-year warranty
Discounted prices and exact stock levels are visible after logging into the online store.
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only

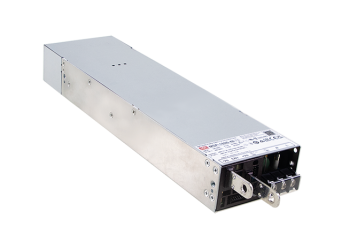

MSP-1600
Description
The MSP-1600 series is a 1600W AC/DC power supply with PFC function, designed for high reliability
and suitable for multiple industries. Key features include: compact size (310*85*41mm) for better space utilization in system installations, ultra-wide input range of 90~264Vac for global compatibility, up to 92%
efficiency, programmable output voltage (15~115%), built-in CANBus communication interface, wide
operating temperature range from -40 to +85°C (+50°C at full load), compliance with OVCIII, built-in
Remote Control /Remote Sense/DC OK signal/auxiliary power, internal PCB coating, complete
protections, certifications for multiple safety standards including 60601-1, 61558-1, 60335-1, 62477-1,
and 61010-1, as well as 2 X MOPP compliance and extremely low leakage current (<500yA). It is
suitable for BF-rated medical equipment and comes with a 5-years warranty, making it a highly cost-
effective solution for industrial power supply needs.
Technical Specification
- MSP-1600: series of 1500~1608W power supplies (see details)
| Model | Output | Tolerance | Interference | Efficiency | Dimensions |
| MSP-600-12 | 12V, 0~125A | +/-1% | 150mV | 88.5% | 310x85x41mm |
| MSP-600-24 | 24V, 0~67A | +/-1% | 200mV | 90.5% | 310x85x41mm |
| MSP-600-36 | 36V, 0~44.5A | +/-1% | 250mV | 91% | 310x85x41mm |
| MSP-600-48 | 48V, 0~33.5A | +/-1% | 300mV | 92% | 310x85x41mm |
