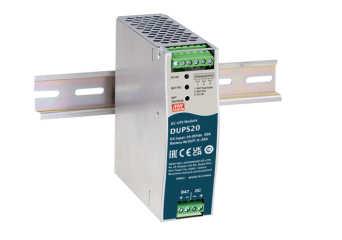

DUPS20

UPS module for DIN rail

  • battery power module in UPS systems
  • connection parallel to the DC bus
  • designed for 24V systems
  • load current up to 20A
  • built-in battery test function
  • protection against reverse battery connection
  • relay connectors and LEDs informing about the functioning of the DC power bus, failure and battery discharge
  • open air cooling
  • width 40mm
  • working temperature -30 ~ + 70 ° C
  • compliance with a number of standards and certificates
  • 3-year warranty
Price from €26.90 Net price

High price? Log in and buy cheaper

In stock

Place the order by 12:00, the package will be shipped on the same day

Free shipping from €300

See 1 model

Promocja cenowa na model HDR-15-5

Product intended for professional use only
DUPS20

DUPS20

Models

Description

The DUPS20 is a DIN rail UPS module. In conjunction with the power supply and an external battery, it forms an emergency power supply system. In the event of a power failure, the DUPS20 automatically switches the load to battery power, thus ensuring the continuous operation of the device. DUPS20 has a built-in battery test function and protection against reverse polarity. LEDs and relay connectors provide information about the functioning of the DC power bus, failure and battery discharge. The product will work in data centers, emergency lighting, UPS systems, central monitoring systems, etc.

Technical Specification

Model DC output BUS DC BUS current Dimension
DUPS20 24~29V 20A 40x125.2x113.5mm
