- Compliance with medical standards (2x MOPP, ITE)
- Low profile (1U)
- Wide input voltage range: 90 ~ 264VAC, 120 ~ 370VDC
- Programmable output voltage and current
- Parallel operation possible DC-OK output
- Remote on / off
- Fan cooling
- Short-circuit, overload, overvoltage and temperature protection
- 5-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Free shipping from €300
Promocja cenowa na model HDR-15-5
Description

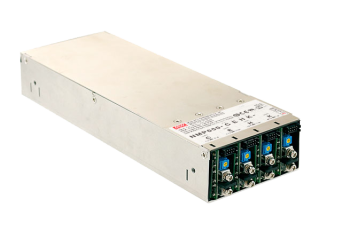

NMP is a series of modular, configurable MEAN WELL power supplies with a 1U profile. The series consists of models with 2 powers: 650 and 1200W. These are not the powers of each power supply, but the maximum power of the modules in a given housing. NMP650 can accommodate up to 4 modules, MNP1K2 up to 6 modules. The modules are available in two versions:
- with one output voltage (NMS-240)
- with two different output voltages (NMD-240)
Each of the modules is available in 4 different versions of the output voltage:
- type C - for 3 ~ 6VDC voltage
- type E - for voltage 6 ~ 15VDC
- type H - for 15 ~ 30VDC voltage
- type K - for voltage 30 ~ 55VDC
The NMP series has remote control functions such as: remote switching on and off of the device, remote voltage and current control and DC-OK signal output. The power supplies also meet medical safety standards (PN-EN 60601-1, IEC 62368-2), and have the required insulation level of 2xMOPP.
Application examples:
- Medical equipment
- Laboratory diagnostic equipment
- Devices of measuring systems
- Telecommunications equipment
- Power supply for industrial automation components
Technical Specification
- NMP650: Modular power supply 650W - SPECIFICATION
