MPM-10
Module type medical power supply: MPM-10-12, MPM-10-15, MPM-10-24, MPM-10-3.3, MPM-10-5
- 1.8"x1” compact size
- Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/EN60601-1
- Suitable for BF application with appropriate system consideration
- No load power consumption<0.075W
- Extremely low leakage current
- Wide operating temp. range -40~+85C
- EMI class B for class II configuration
- Protections: Short circuit / Overload / Over voltage / Over temperature
- No minimum load require
High price? Log in and buy cheaper
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMPM-10-12medical power supply 10W 12V 0.85AIn stockWarranty: €9.10€11.19Login to check your price MPM-10-12medical power supply 10W 12V 0.85AAvailability:In stockNet price:€9.10 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMPM-10-15medical power supply 10W 15V 0.67AOut of stock Warranty: €9.10€11.19Login to check your price MPM-10-15medical power supply 10W 15V 0.67AAvailability: Out of stockNet price:€9.10 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMPM-10-24medical power supply 10W 24V 0.42AOut of stock Warranty: €9.10€11.19Login to check your price MPM-10-24medical power supply 10W 24V 0.42AAvailability: Out of stockNet price:€9.10 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMPM-10-3.3medical power supply 8W 3.3V 2.5AOut of stock Warranty: €9.10€11.19Login to check your price MPM-10-3.3medical power supply 8W 3.3V 2.5AAvailability: Out of stockNet price:€9.10 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMPM-10-5medical power supply 10W 5V 2AOut of stock Warranty: €9.10€11.19Login to check your price MPM-10-5medical power supply 10W 5V 2AAvailability: Out of stockNet price:€9.10
Description

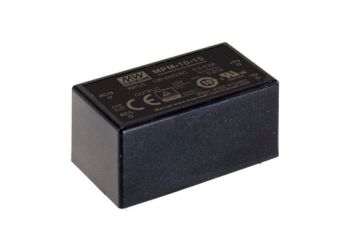

MPM-10 is a 10W high density and small size (45.7*25.4*21.5mm) AC/DC module type medical grade power supply series offered in pin type. It features the operation for 80~264VAC, a low no load power consumption less than 0.075W, a high efficiency up to 84%, Class II (no FG) double insulation, outstanding dissipation and high lifespan thanks to the interior potting, 5G anti-vibration, high EMC performance, 4KVAC isolation, etc. The design observes lEC/EN60601-1 and ANSI/AAMI ES60601-1 version three with 2xMOPP level and ultra-low leakage current (<80 μA). It is very suitable for BF (patient contact) type medical device or relevant equipment.
Available models:
3.3V: MPM-10-3.3
5V: MPM-10-5
12V: MPM-10-12
15V: MPM-10-15
24V: MPM-10-24
Technical Specification
MPM-10: 9-11W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension |
| MPM-10-3.3 | 3.3V, 0~2.5A | +/-2.5% | 120mV | 78% | 45.7x25.4x21.5mm |
| MPM-10-5 | 5V, 0~2A | +/-2.5% | 100mV | 81% | 45.7x25.4x21.5mm |
| MPM-10-12 | 12V, 0~0.85A | +/-2.5% | 180mV | 83% | 45.7x25.4x21.5mm |
| MPM-10-15 | 15V, 0~0.67A | +/-2.5% | 180mV | 83% | 45.7x25.4x21.5mm |
| MPM-10-24 | 24V, 0~0.42A | +/-2.5% | 200mV | 84% | 45.7x25.4x21.5mm |
