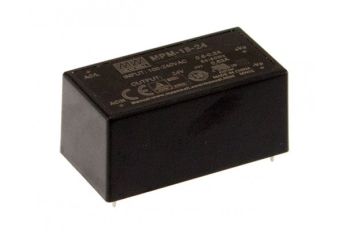

MPM-15
Module type medical power supply: MPM-15-15, MPM-15-24, MPM-15-3.3, MPM-15-5, MPM-15-12
- 2.06”x1,07” compact size
- Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/EN60601-1
- Suitable for BF application with appropriate system consideration
- No load power consumption<0.1W
- Extremely low leakage current
- Wide operating temp. range -40 ~+85°C
- EMI class B for class II configuration
- Protections: Short circuit / Overload / Over voltage / Over temperature
- No minimum load required
High price? Log in and buy cheaper
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMPM-15-15medical power supply 15W 15V 1.0AIn stockWarranty: €10.00€12.30Login to check your price MPM-15-15medical power supply 15W 15V 1.0AAvailability:In stockNet price:€10.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMPM-15-24medical power supply 15W 24V 0.63AOut of stock Warranty: €10.00€12.30Login to check your price MPM-15-24medical power supply 15W 24V 0.63AAvailability: Out of stockNet price:€10.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMPM-15-3.3medical power supply 12W 3.3V 3.5AOut of stock Warranty: €10.00€12.30Login to check your price MPM-15-3.3medical power supply 12W 3.3V 3.5AAvailability: Out of stockNet price:€10.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMPM-15-5medical power supply 15W 5V 3AOut of stock Warranty: €10.00€12.30Login to check your price MPM-15-5medical power supply 15W 5V 3AAvailability: Out of stockNet price:€10.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMPM-15-12medical power supply 15W 12V 1.25AOut of stock Warranty: €10.00€12.30Login to check your price MPM-15-12medical power supply 15W 12V 1.25AAvailability: Out of stockNet price:€10.00
Description
MPM-15 is a 15W high densiły and small size (52.4*27.2*24mm) AC/DC module type medical power supply series offered in pin type. It features the operation for 80~264VAC, a low no load power consumption less than 0.1 W, a high efficiency up to 87%, Class II (no FG) double insulation, outstanding dissipation and high lifespan thanks to the interior potting, 2G anti-vibration, high EMC performance, 4KVAC isolation, etc. The design observes IEC/EN60601-1 and ANSI/AAMI ES60601-1 version three with 2xMOPP level and ultra-low leakage current (<80 μA). It is very suitable for BF (patient contact) type medical device or relevant equipment.
Available models:
- 3.3V: MPM-15-3.3
- 5V: MPM-15-5
- 12V: MPM-15-12
- 15V: MPM-15-15
- 24V: MPM-15-24
Technical Specification
MPM-15: 11-15W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension |
| MPM-15-3.3 | 3.3V, 0~3.5A | +/-1.5% | 150mV | 83.5% | 52.4x27.2x24mm |
| MPM-15-5 | 5V, 0~3A | +/-1.5% | 150mV | 85.5% | 52.4x27.2x24mm |
| MPM-15-12 | 12V, 0~1.25A | +/-1.5% | 150mV | 86.5% | 52.4x27.2x24mm |
| MPM-15-15 | 15V, 0~1A | +/-1.5% | 180mV | 87% | 52.4x27.2x24mm |
| MPM-15-24 | 24V, 0~0.63A | +/-1.5% | 180mV | 86.5% | 52.4x27.2x24mm |
