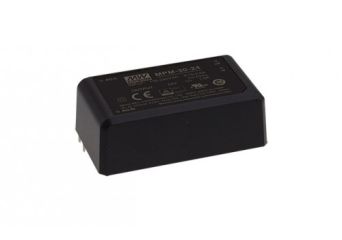

MPM-30
Module type medical power supply: MPM-30-15, MPM-30-24, MPM-30-3.3, MPM-30-48, MPM-30-5, MPM-30-12
- 2.73”x1.53” compact size
- Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/EN60601-1
- Suitable for BF application with appropriate system consideration
- No load power consumption<0.075W
- Extremely low leakage current
- Wide operating temp. range -40 ~+85°C
- EMI class B for class II configuration
- Protections: Short circuit / Overload / Over voltage
- No minimum load required
High price? Log in and buy cheaper
Free shipping from €300
Promocja cenowa na model HDR-15-5
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMPM-30-15medical power supply 30W 15V 2AOut of stock Warranty: €16.30€20.05Login to check your price MPM-30-15medical power supply 30W 15V 2AAvailability: Out of stockNet price:€16.30 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMPM-30-24medical power supply 30W 24V 1.3AOut of stock Warranty: €16.30€20.05Login to check your price MPM-30-24medical power supply 30W 24V 1.3AAvailability: Out of stockNet price:€16.30 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMPM-30-3.3medical power supply 20W 3.3V 6AOut of stock Warranty: €16.30€20.05Login to check your price MPM-30-3.3medical power supply 20W 3.3V 6AAvailability: Out of stockNet price:€16.30 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMPM-30-48medical power supply 30W 48V 0.625AOut of stock Warranty: €16.30€20.05Login to check your price MPM-30-48medical power supply 30W 48V 0.625AAvailability: Out of stockNet price:€16.30 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMPM-30-5medical power supply 30W 5V 6AOut of stock Warranty: €16.30€20.05Login to check your price MPM-30-5medical power supply 30W 5V 6AAvailability: Out of stockNet price:€16.30 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMPM-30-12medical power supply 30W 12V 2.5AOut of stock Warranty: €16.30€20.05Login to check your price MPM-30-12medical power supply 30W 12V 2.5AAvailability: Out of stockNet price:€16.30
Description
MPM-30 is a 30W high densiły and small size (69.5x39x24mm) AC/DC module type medical power supply series offered in pin type. It features the operation for 80~264VAC, a low no load power consumption less than 0.075W, a high efficiency up to 91%, Class II (no FG) double insulation, outstanding dissipation and high lifespan thanks to the interior potting, high EMC performance, 4KVAC isolation, etc. PCB mounting style model (Blank) meet the anti-vibration demand up to 2G and screw terminal style model (ST) meet the anti-vibration demand up to 5G.
The design observes IEC/EN60601-1 and ANSI/AAMI ES60601-1 version three with 2xMOPP level and ultra-low leakage current (<80 μA). It is very suitable for BF (patient contact) type medical device or relevant equipment. In addition to PCB mounting style, MPM-30 series also offers the screw terminal style model (ST).
Avaialble models:
- 3.3V: MPM-30-3.3
- 5V: MPM-30-5
- 12V: MPM-30-12
- 15V: MPM-30-15
- 24V: MPM-30-24
- 48V: MPM-30-48
Technical Specification
MPM-30: 19.8-31.2W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension |
| MPM-30-3.3 | 3.3V, 0~6A | +/-2% | 80mV | 82.5% | 69.5x39x24mm |
| MPM-30-5 | 5V, 0~6A | +/-2% | 80mV | 86.5% | 69.5x39x24mm |
| MPM-30-12 | 12V, 0~2.5A | +/-2% | 120mV | 90% | 69.5x39x24mm |
| MPM-30-15 | 15V, 0~2A | +/-2% | 120mV | 89% | 69.5x39x24mm |
| MPM-30-24 | 24V, 0~1.3A | +/-2% | 200mV | 90% | 69.5x39x24mm |
| MPM-30-48 | 48V, 0~0.63A | +/-2% | 200mV | 91% | 69.5x39x24mm |
