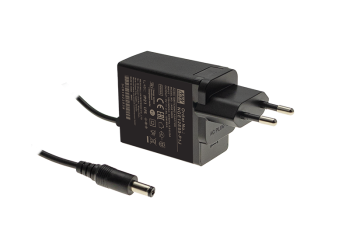

NGE12E
Medical power supply with EU plug
- wide input voltage range 80-264VAC
- compliance with medical standards (2xMOPP)
- power consumption in no-load condition <0.1W
- low leakage current <100uA
- compliance with level VI energy efficiency
- protection: short circuit, overvoltage and overload
- Class II insulation
- operating temperature -30~+70°C
- compliance with many standards and certificates
- fully enclosed plastic housing
- with non-interchangeable EU plug
- 3 years warranty
Prices with discounts and exact stock levels are visible after logging in to the e-shop.
High price? Log in and buy cheaper
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNGE12E05-USBwall-in plug in power supply 12W 5V 2.4AIn stockWarranty: €9.00€11.07Login to check your price NGE12E05-USBwall-in plug in power supply 12W 5V 2.4AAvailability:In stockNet price:€9.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNGE12E05-P1Jwall-in plug in power supply 12W 5V 2.4AIn stockWarranty: €9.00€11.07Login to check your price NGE12E05-P1Jwall-in plug in power supply 12W 5V 2.4AAvailability:In stockNet price:€9.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNGE12E09-P1Jwall-in plug in power supply 12W 9V 1.33AOut of stock Warranty: €9.00€11.07Login to check your price NGE12E09-P1Jwall-in plug in power supply 12W 9V 1.33AAvailability: Out of stockNet price:€9.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNGE12E12-P1Jwall-in plug in power supply 12W 12V 1AIn stockWarranty: €9.00€11.07Login to check your price NGE12E12-P1Jwall-in plug in power supply 12W 12V 1AAvailability:In stockNet price:€9.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNGE12E15-P1Jwall-in plug in power supply 12W 15V 0.8AOut of stock Warranty: €9.00€11.07Login to check your price NGE12E15-P1Jwall-in plug in power supply 12W 15V 0.8AAvailability: Out of stockNet price:€9.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNGE12E18-P1Jwall-in plug in power supply 12W 18V 0.83AOut of stock Warranty: €9.00€11.07Login to check your price NGE12E18-P1Jwall-in plug in power supply 12W 18V 0.83AAvailability: Out of stockNet price:€9.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNGE12E24-P1Jwall-in plug in power supply 12W 24V 0.625AIn stockWarranty: €9.00€11.07Login to check your price NGE12E24-P1Jwall-in plug in power supply 12W 24V 0.625AAvailability:In stockNet price:€9.00
Description
NGE12 is a highly reliable, 12W wall-mounted style single-output green adaptor series, which is compact and convenient for carry. NGE12 is a Class II power unit (no FG), accepting the input range from 80VAC to 264VAC that it can satisfy the demands for various types of electrical devices. With the working efficiency up to 88.5% and the extremely low no-load power consumption below 0.075W, NGE12 is compliant with the latest USA energy regulation EISA 2007/DoE, Canada NRCan,Australia and New Zealand MEPS, Korea KMEPS, EU ErP and CoC version5. The supreme feature allows the adaptor to save the energy when it is under either the operating mode or the standby mode. The entire series is approved for ITE, medical, household and industrial appliance safety regulations; moreover, it adopts the 94V-0 flame retardant plastic case that it can effectively prevent users from electric hazard.
Technical Specification
- NGE12I: Medical power supply 12~15W (SPECIFICATION)
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Dimensions |
| NGE12E05-USB | 5V, 0~2.4A | +/-5% | 60mV | 82% | 48x28x55mm |
| NGE12E05-P1J | 5V, 0~2.4A | +/-5% | 60mV | 82% | 48x28x55mm |
| NGE12E09-P1J | 9V, 0~1.33A | +/-5% | 100mV | 86.5% | 48x28x55mm |
| NGE12E12-P1J | 12V, 0~1A | +/-3% | 120mV | 87.5% | 48x28x55mm |
| NGE12E15-P1J | 15V, 0~0.8A | +/-3% | 150mV | 87% | 48x28x55mm |
| NGE12E18-P1J | 18V, 0~0.83A | +/-3% | 180mV | 88.5% | 48x28x55mm |
| NGE12E24-P1J | 24V, 0~0.66A | +/-3% | 240mV | 88.5% | 48x28x55mm |
