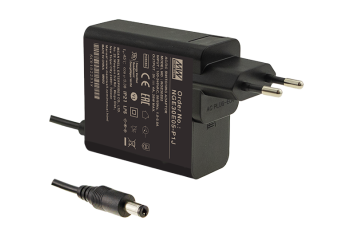

NGE30E
Medical power supply with EU plug
- wide input voltage range 80-264VAC
- compliance with medical standards (2xMOPP)
- power consumption in no-load condition <0.1W
- low leakage current <100uA
- compliance with level VI energy efficiency
- protection: short circuit, overvoltage and overload
- Class II insulation
- operating temperature -30~+70°C
- compliance with many standards and certificates
- fully enclosed plastic housing
- with non-interchangeable EU plug
- 3 years warranty
Prices with discounts and exact stock levels are visible after logging in to the e-shop.
High price? Log in and buy cheaper
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNGE30E05-P1Jwall plug-in power supply 20W 5V 4AOut of stock Warranty: €12.20€15.01Login to check your price NGE30E05-P1Jwall plug-in power supply 20W 5V 4AAvailability: Out of stockNet price:€12.20 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNGE30E09-P1Jwall plug-in power supply 30W 9V 3.33AOut of stock Warranty: €12.20€15.01Login to check your price NGE30E09-P1Jwall plug-in power supply 30W 9V 3.33AAvailability: Out of stockNet price:€12.20 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNGE30E12-P1Jwall plug-in power supply 30W 12V 2.5AOut of stock Warranty: €12.20€15.01Login to check your price NGE30E12-P1Jwall plug-in power supply 30W 12V 2.5AAvailability: Out of stockNet price:€12.20 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNGE30E15-P1Jwall plug-in power supply 30W 15V 2AOut of stock Warranty: €12.20€15.01Login to check your price NGE30E15-P1Jwall plug-in power supply 30W 15V 2AAvailability: Out of stockNet price:€12.20 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNGE30E18-P1Jwall plug-in power supply 30W 18V 1.66AOut of stock Warranty: €12.20€15.01Login to check your price NGE30E18-P1Jwall plug-in power supply 30W 18V 1.66AAvailability: Out of stockNet price:€12.20 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNGE30E24-P1Jwall plug-in power supply 30W 24V 1.25AOut of stock Warranty: €12.20€15.01Login to check your price NGE30E24-P1Jwall plug-in power supply 30W 24V 1.25AAvailability: Out of stockNet price:€12.20 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNGE30E48-P1Jwall plug-in power supply 30W 48V 0.63AOut of stock Warranty: €12.20€15.01Login to check your price NGE30E48-P1Jwall plug-in power supply 30W 48V 0.63AAvailability: Out of stockNet price:€12.20
Description
NGE30 is a highly reliable, 30W wall-mounted style single-output green adaptor series, which is compact and convenient for carry. NGE30 is a Class II power unit (no FG), accepting the input range from 80VAC to 264VAC that it can satisfy the demands for various types of electrical devices. With the working efficiency up to 91.5% and the extremely low no-load power consumption below 0.075W, NGE30 is compliant with the latest USA energy regulation EISA 2007/DoE, Canada NRCan,Australia and New Zealand MEPS, Korea KMEPS, EU ErP and CoC version5. The supreme feature allows the adaptor to save the energy when it is under either the operating mode or the standby mode. The entire series is approved for ITE, medical, household and industrial appliance safety regulations; moreover, it adopts the 94V-0 flame retardant plastic case that it can effectively prevent users from electric hazard.
Technical Specification
- NGE30E: Medical power supply 30W → Manufacturer documentation (specification, certificate, others)
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Dimensions |
| NGE30E05-P1J | 5V, 0~4A | +/-5% | 100mV | 82% | 62x30x65mm |
| NGE30E09-P1J | 9V, 0~3.33A | +/-5% | 100mV | 87.5% | 62x30x65mm |
| NGE30E12-P1J | 12V, 2.5A | +/-3% | 120mV | 88.5% | 62x30x65mm |
| NGE30E15-P1J | 15V, 0~2A | +/-3% | 150mV | 87% | 62x30x65mm |
| NGE30E18-P1J | 18V, 0~1.66A | +/-2% | 180mV | 88% | 62x30x65mm |
| NGE30E24-P1J | 24V, 0~1.25A | +/-2% | 240mV | 88.5% | 62x30x65mm |
| NGE30E48-P1J | 48V, 0~0.63A | +/-2% | 240mV | 91.5% | 62x30x65mm |
