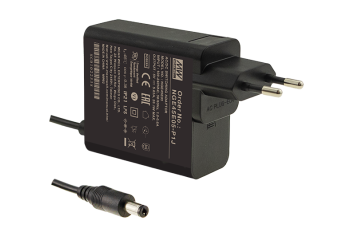

NGE45E
Medical power supply with EU plug
- wide input voltage range 80-264VAC
- compliance with medical standards (2xMOPP)
- power consumption in no-load condition <0.1W
- low leakage current <100uA
- compliance with level VI energy efficiency
- protection: short circuit, overvoltage and overload
- Class II insulation
- operating temperature -30~+70°C
- compliance with many standards and certificates
- fully enclosed plastic housing
- with non-interchangeable EU plug
- 3 years warranty
Prices with discounts and exact stock levels are visible after logging in to the e-shop.
High price? Log in and buy cheaper
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNGE45E05-P1Jwall plug-in power supply 28W 5V 5.63AOut of stock Warranty: €14.50€17.84Login to check your price NGE45E05-P1Jwall plug-in power supply 28W 5V 5.63AAvailability: Out of stockNet price:€14.50 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNGE45E09-P1Jwall plug-in power supply 40W 9V 4.5AOut of stock Warranty: €14.50€17.84Login to check your price NGE45E09-P1Jwall plug-in power supply 40W 9V 4.5AAvailability: Out of stockNet price:€14.50 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNGE45E12-P1Jwall plug-in power supply 45W 12V 3.75AOut of stock Warranty: €14.50€17.84Login to check your price NGE45E12-P1Jwall plug-in power supply 45W 12V 3.75AAvailability: Out of stockNet price:€14.50 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNGE45E15-P1Jwall plug-in power supply 45W 15V 3AOut of stock Warranty: €14.50€17.84Login to check your price NGE45E15-P1Jwall plug-in power supply 45W 15V 3AAvailability: Out of stockNet price:€14.50 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNGE45E18-P1Jwall plug-in power supply 45W 18V 2.5AOut of stock Warranty: €14.50€17.84Login to check your price NGE45E18-P1Jwall plug-in power supply 45W 18V 2.5AAvailability: Out of stockNet price:€14.50 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNGE45E24-P1Jwall plug-in power supply 45W 24V 1.88AOut of stock Warranty: €14.50€17.84Login to check your price NGE45E24-P1Jwall plug-in power supply 45W 24V 1.88AAvailability: Out of stockNet price:€14.50 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNGE45E48-P1Jwall plug-in power supply 45W 48V 0.94AOut of stock Warranty: €14.50€17.84Login to check your price NGE45E48-P1Jwall plug-in power supply 45W 48V 0.94AAvailability: Out of stockNet price:€14.50
Description
NGE45 is a highly reliable, 45W wall-mounted style single-output green adaptor series, which is compact and convenient for carry. NGE45 is a Class II power unit (no FG), accepting the input range from 80VAC to 264VAC that it can satisfy the demands for various types of electrical devices. With the working efficiency up to 91% and the extremely low no-load power consumption below 0.075W, NGE45 is compliant with the latest USA energy regulation EISA 2007/DoE, Canada NRCan,Australia and New Zealand MEPS, Korea KMEPS, EU ErP and CoC version5. The supreme feature allows the adaptor to save the energy when it is under either the operating mode or the standby mode. The entire series is approved for ITE, medical, household and industrial appliance safety regulations; moreover, it adopts the 94V-0 flame retardant plastic case that it can effectively prevent users from electric hazard.
Technical Specification
- NGE45E: Medical power supply 45W → Manufacturer documentation (specification, certificate, others)
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Dimensions |
| NGE45E05-P1J | 5V, 0~5.63A | +/-5% | 100mV | 84% | 62x30x65mm |
| NGE45E09-P1J | 9V, 0~4.5A | +/-5% | 100mV | 89% | 62x30x65mm |
| NGE45E12-P1J | 12V, 3.75A | +/-3% | 120mV | 90% | 62x30x65mm |
| NGE45E15-P1J | 15V, 0~3A | +/-3% | 150mV | 90% | 62x30x65mm |
| NGE45E18-P1J | 18V, 0~2.5A | +/-3% | 180mV | 90% | 62x30x65mm |
| NGE45E24-P1J | 24V, 0~1.88A | +/-2% | 240mV | 90% | 62x30x65mm |
| NGE45E48-P1J | 48V, 0~0.94A | +/-2% | 240mV | 91% | 62x30x65mm |
