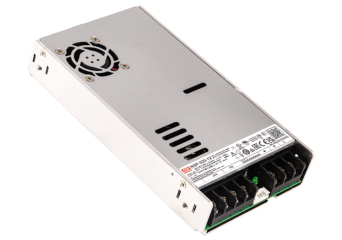

NSP-320
MEAN WELL High Reliable Enclosed Type Power Supply
- 85~305Vac input with PFC(277Vac available)
- No load power consumption <0.3W~0.5W by R.C
- Global certificates in multi-fields
(ITE 62368-1, Medical 60601-1,Household 60335-1,
Industrial 61558-1/2-16/61010-1, Energy converter 62477-1) - 200% peak power capability(12~60V models)
- High efficiency up to 93.5%
- -40~85C wide range operation temperature(> +60 °C derating)
- Extremely low leakage current<350uA, 2 x MOPP,
suitable for BF medical applications - Built-in constant current limiting circuit
- Protections: Short circuit / Overload / Over voltage
/ Over temperature - Forced
- Forced air cooling by built-in DC fan with noise <40dB and
fan ON/OFF control - Built-in remote ON/OFF control/ Remote Sense/ DC OK signal
- Over voltage category Ill (OVC III)
- Operating altitude up to 5000 meters
- Conformal coating
- 5 years warranty
High price? Log in and buy cheaper
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNSP-320-5switching power supply 300W 5V 60AOut of stock Warranty: €43.10€53.01Login to check your price NSP-320-5switching power supply 300W 5V 60AAvailability: Out of stockNet price:€43.10 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNSP-320-7.5switching power supply 300W 7.5V 40AOut of stock Warranty: €43.10€53.01Login to check your price NSP-320-7.5switching power supply 300W 7.5V 40AAvailability: Out of stockNet price:€43.10 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNSP-320-12switching power supply 322.8W 12V 26.9AOut of stock Warranty: €43.10€53.01Login to check your price NSP-320-12switching power supply 322.8W 12V 26.9AAvailability: Out of stockNet price:€43.10 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNSP-320-15switching power supply 321W 15V 21.4AOut of stock Warranty: €43.10€53.01Login to check your price NSP-320-15switching power supply 321W 15V 21.4AAvailability: Out of stockNet price:€43.10 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNSP-320-24switching power supply 320.4W 24V 13.4AIn stockWarranty: €43.10€53.01Login to check your price NSP-320-24switching power supply 320.4W 24V 13.4AAvailability:In stockNet price:€43.10 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNSP-320-27switching power supply 321.3W 27V 11.9AOut of stock Warranty: €43.10€53.01Login to check your price NSP-320-27switching power supply 321.3W 27V 11.9AAvailability: Out of stockNet price:€43.10 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNSP-320-36switching power supply 320.4W 36V 8.9AOut of stock Warranty: €43.10€53.01Login to check your price NSP-320-36switching power supply 320.4W 36V 8.9AAvailability: Out of stockNet price:€43.10 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNSP-320-48switching power supply 321.6W 48V 6.7AOut of stock Warranty: €43.10€53.01Login to check your price NSP-320-48switching power supply 321.6W 48V 6.7AAvailability: Out of stockNet price:€43.10 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNSP-320-60switching power supply 324W 60V 5.4AOut of stock Warranty: €43.10€53.01Login to check your price NSP-320-60switching power supply 324W 60V 5.4AAvailability: Out of stockNet price:€43.10
Description
The NSP-320 series is a 320W AC/DC power supply with PFC function, designed for high reliability and suitable for multiple industries. Key features include: compact size (179*99*30 mm) for better space utilization in system installations, ultra-wide input range of 85~305Vac for global compatibility, up to 93.5% efficiency and low standby power consumption (<0.3W~0.5W) for energy-saving and carbon reduction, constant current design with 200% peak power capability, wide operating temperature range from -40 to +85°C(+60°C at full load), compliance with OVCIII, built-in Remote Control , internal PCB coating, complete protections, certifications for multiple safety standards including 62368-1, 60601-1, 61558-1, 60335-1, 62477-1, and 61010-1, as well as 2 X MOPP compliance and extremely low leakage current (<350uA). It is suitable for BF-rated medical equipment and comes with a 5-years warranty, making it a highly cost-effective solution for industrial power supply needs.
Technical Specification
- MEAN WELL NSP-320: Enclosed type 320W Series → Manufacturer documentation (specification, certificates, others)
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension |
| NSP-320-5 | 5V, 0~40A | +/-2% | 200mV | 91% | 179x99x30mm |
| NSP-320-7.5 | 7.5V, 0~26.8A | +/-2% | 200mV | 91% | 179x99x30mm |
| NSP-320-12 | 12V, 0~16.7A | +/-2% | 200mV | 93.5% | 179x99x30mm |
| NSP-320-15 | 15V, 0~13.4A | +/-2% | 200mV | 93.5% | 179x99x30mm |
| NSP-320-24 | 24V, 0~8.4A | +/-1% | 240mV | 93.5% | 179x99x30mm |
| NSP-320-27 | 27V, 0~7.4A | +/-1% | 240mV | 93.5% | 179x99x30mm |
| NSP-320-36 | 27V, 0~5.6A | +/-1% | 240mV | 93.5% | 179x99x30mm |
| NSP-320-48 | 48V, 0~4.2A | +/-1% | 240mV | 93.5% | 179x99x30mm |
| NSP-320-60 | 60V, 0~3.36A | +/-1% | 300mV | 93.5% | 179x99x30mm |
