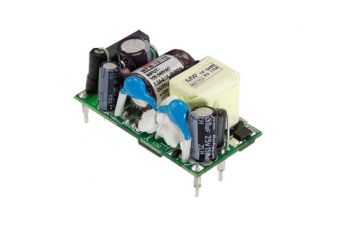

MFM-10
Open frame medical power supply: MFM-10-15, MFM-10-24, MFM-10-3.3, MFM-10-5, MFM-10-12
- 1.65"x0.88” compact size
- Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/EN60601-1
- Suitable for BF application with appropriate system consideration
- No load power consumption<0.075W
- Extremely low leakage current
- Wide operating temp. range -30~+85°C
- EMI class B for class II configuration
- Protections: Short circuit / Overload / Over voltage / Over temperature
- No minimum load required
Price from €7.90 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMFM-10-15medical power supply 10W 15V 0.67AOut of stock Warranty: €7.90€9.72Login to check your price MFM-10-15medical power supply 10W 15V 0.67AAvailability: Out of stockNet price:€7.90 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMFM-10-24medical power supply 10W 24V 0.42AOut of stock Warranty: €7.90€9.72Login to check your price MFM-10-24medical power supply 10W 24V 0.42AAvailability: Out of stockNet price:€7.90 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMFM-10-3.3medical power supply 8W 3.3V 2.5AOut of stock Warranty: €7.90€9.72Login to check your price MFM-10-3.3medical power supply 8W 3.3V 2.5AAvailability: Out of stockNet price:€7.90 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMFM-10-5medical power supply 10W 5V 2AOut of stock Warranty: €7.90€9.72Login to check your price MFM-10-5medical power supply 10W 5V 2AAvailability: Out of stockNet price:€7.90 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMFM-10-12medical power supply 10W 12V 0.85AOut of stock Warranty: €7.90€9.72Login to check your price MFM-10-12medical power supply 10W 12V 0.85AAvailability: Out of stockNet price:€7.90
Description
MFM-10 is a 10W high density and small size (42*22.3*20.5mm) AC/DC on board type medical grade power supply series. It features the operation for 80~264VAC, a low no load power consumption less than 0.075W, a high efficiency up to 84%, Class II (no FG) double insulation, outstanding dissipation, 5G anti-vibration, high EMC performance, 4KVAC isolation, etc. The design observes IEC/EN60601-1 and ANSI/AAMI ES60601-1 version three with 2xMOPP level and ultra-low leakage current (<80 μA). It is very suitable for BF (patient contact) type medical device or relevant equipment.
Available models:
- 3.3V: MFM-10-3.3
- 5V: MFM-10-5
- 12V: MFM-10-12
- 15V: MFM-10-15
- 24V: MFM-10-24
Technical Specification
MFM-05: 8-10W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension |
| MFM-10-3.3 | 3.3V, 0~2.5A | +/-2.5% | 120mV | 78% | 42x22.3x20.5mm |
| MFM-10-5 | 5V, 0~2.0A | +/-2.5% | 100mV | 81% | 42x22.3x20.5mm |
| MFM-10-12 | 12V, 0~0.85A | +/-2.5% | 180mV | 83% | 42x22.3x20.5mm |
| MFM-10-15 | 15V, 0~0.67A | +/-2.5% | 180mV | 83% | 42x22.3x20.5mm |
| MFM-10-24 | 24V, 0~0.42A | +/-2.5% | 200mV | 84% | 42x22.3x20.5mm |
