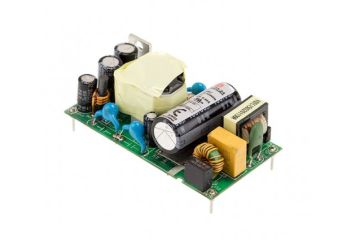

MFM-30
Open frame medical power supply: MFM-30-15, MFM-30-24, MFM-30-3.3, MFM-30-48, MFM-30-5, MFM-30-12
- 2.58"x1.38” compact size
- Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/EN60601-1
- Suitable for BF application with appropriate system consideration
- No load power consumption<0.075W
- Extremely low leakage current
- Wide operating temp. range -40~+85°C
- EMI class B for class II configuration
- Protections: Short circuit / Overload / Over voltage
- No minimum load required
High price? Log in and buy cheaper
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMFM-30-15medical power supply 30W 15V 2AOut of stock Warranty: €13.70€16.85Login to check your price MFM-30-15medical power supply 30W 15V 2AAvailability: Out of stockNet price:€13.70 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMFM-30-24medical power supply 30W 24V 1.3AOut of stock Warranty: €13.70€16.85Login to check your price MFM-30-24medical power supply 30W 24V 1.3AAvailability: Out of stockNet price:€13.70 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMFM-30-3.3medical power supply 20W 3.3V 6AOut of stock Warranty: €13.70€16.85Login to check your price MFM-30-3.3medical power supply 20W 3.3V 6AAvailability: Out of stockNet price:€13.70 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMFM-30-48medical power supply 30W 48V 0.3AOut of stock Warranty: €13.70€16.85Login to check your price MFM-30-48medical power supply 30W 48V 0.3AAvailability: Out of stockNet price:€13.70 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMFM-30-5medical power supply 30W 5V 6AIn stockWarranty: €13.70€16.85Login to check your price MFM-30-5medical power supply 30W 5V 6AAvailability:In stockNet price:€13.70 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMFM-30-12medical power supply 30W 12V 2.5AOut of stock Warranty: €13.70€16.85Login to check your price MFM-30-12medical power supply 30W 12V 2.5AAvailability: Out of stockNet price:€13.70
Description
MFM-30 is a 30W high density and small size (65*35*23mm) AC/DC on board type medical grade power supply series. It features the operation for 80~264VAC, a low no load power consumption less than 0.075W, a high efficiency up to 91%, Class II (no FG) double insulation, outstanding dissipation, 3G anti-vibration, high EMC performance, 4KVAC isolation, etc. The design observes IEC/EN60601-1 and ANSI/AAMI ES60601-1 version three with 2xMOPP level and ultra-low leakage current (<80 μA). It is very suitable for BF (patient contact) type medical device or relevant equipment.
Available models:
- 3.3V: MFM-30-3.3
- 5V: MFM-30-5
- 12V: MFM-30-12
- 15V: MFM-30-15
- 24V: MFM-30-24
- 48V: MFM-30-48
Technical Specification
MFM-30: 19.8-36W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension |
| MFM-30-3.3 | 3.3V, 0~6A | +/-2% | 80mV | 82.5% | 65.5x35x23mm |
| MFM-30-5 | 5V, 0~6A | +/-2% | 80mV | 86.5% | 65.5x35x23mm |
| MFM-30-12 | 12V, 0~2.5A | +/-2% | 120mV | 90% | 65.5x35x23mm |
| MFM-30-15 | 15V, 0~2A | +/-2% | 120mV | 89% | 65.5x35x23mm |
| MFM-30-24 | 24V, 0~1.3A | +/-2% | 200mV | 90% | 65.5x35x23mm |
| MFM-30-48 | 24V, 0~0.63A | +/-2% | 200mV | 91% | 65.5x35x23mm |
