PSC-100

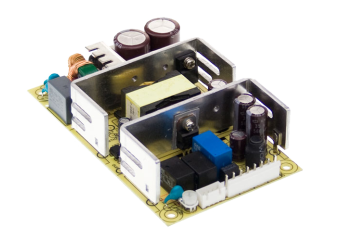

Open frame power supply with UPS function: PSC-100A, PSC-100B, PSC-100A-C, PSC-100B-C
- input voltage 90-264VAC, 124-370VDC
- protections: short circuit, overvoltage and overload protection
- protection against discharge and reverse connection of the battery
- adjustable output voltage 13.8V: 12 ~ 15V; 27.6V: 24 ~ 29
- AC OK relay output and low battery charge
- small size, high efficiency
- cooling with open air circulation
- version 'C' - with housing
- working temperature from -20 ~ + 70 ° C
- compliance with many standards and certificates
- 2 years warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
High price? Log in and buy cheaper
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPSC-100Apower supply 100W 13.8V 7A, 13.8V 2.5AIn stockWarranty: €34.10€41.94Login to check your price PSC-100Apower supply 100W 13.8V 7A, 13.8V 2.5AAvailability:In stockNet price:€34.10 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPSC-100Bpower supply 100W 27.6V 3.5A, 27.6V 1.25AOut of stock Warranty: €34.10€41.94Login to check your price PSC-100Bpower supply 100W 27.6V 3.5A, 27.6V 1.25AAvailability: Out of stockNet price:€34.10 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPSC-100A-Cpower supply 100W 13.8V 7A, 13.8V 2.5AOut of stock Warranty: €37.20€45.76Login to check your price PSC-100A-Cpower supply 100W 13.8V 7A, 13.8V 2.5AAvailability: Out of stockNet price:€37.20 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPSC-100B-Cpower supply 100W 27.6V 3.5A, 27.6V 1.25AIn stockWarranty: €37.20€45.76Login to check your price PSC-100B-Cpower supply 100W 27.6V 3.5A, 27.6V 1.25AAvailability:In stockNet price:€37.20
Description
The PSC series power supplies without a casing (or with a partial casing) are intended for operation in monitoring systems, access control, alarm systems, etc. Models PSC-35, PSC-60, PSC-100 and PSC-160 with an external battery can work as UPS. Discharge protection avoids over-discharging the battery. The lack of a housing gives a lot of freedom to install power supplies inside the devices, and the input and output connectors allow you to connect the cables.
Technical Specification
-
PSC-100: 100~101W -output with battery charging DETAILS
Model Output Tolerance Ripple & noise Efficiency Max power Dimension PSC-100A 13.8V, 0~7.0A
13.8V, 0~2.5A+/-1%
(ładowanie)100mV 86% 100W 127x76.2x31mm PSC-100B 27.6V, 0~3.5A
27.6V, 0~1.25A+/-1%
(ładowanie)100mV 88% 101W 127x76.2x31mm
