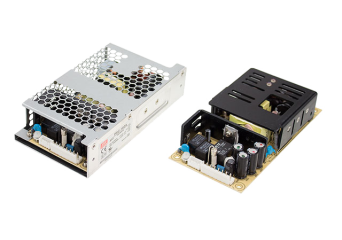

PSC-160
Open frame power supply with UPS function: PSC-160A, PSC-160B, PSC-160A-C, PSC-160B-C
- input voltage 90-264VAC, 124-370VDC
- protections: short circuit, overvoltage and overload protection
- protection against discharge and reverse connection of the battery
- adjustable output voltage 13.8V: 12 ~ 15V; 27.6V: 24 ~ 29
- AC OK relay output and low battery charge
- small size, high efficiency
- version 'C' - with housing
- cooling with open air circulation
- working temperature from -20 ~ + 70 ° C
- compliance with many standards and certificates
- 2 years warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
High price? Log in and buy cheaper
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPSC-160Apower supply 160W 13.8V 11.6A, 13.8V 4AIn stockWarranty: €45.10€55.47Login to check your price PSC-160Apower supply 160W 13.8V 11.6A, 13.8V 4AAvailability:In stockNet price:€45.10 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPSC-160A-Cpower supply 160W 13.8V 11.6A, 13.8V 4AIn stockWarranty: €47.10€57.93Login to check your price PSC-160A-Cpower supply 160W 13.8V 11.6A, 13.8V 4AAvailability:In stockNet price:€47.10 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPSC-160Bpower supply 160W 27.6V 5.8A, 27.6V 2AOut of stock Warranty: €45.10€55.47Login to check your price PSC-160Bpower supply 160W 27.6V 5.8A, 27.6V 2AAvailability: Out of stockNet price:€45.10 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPSC-160B-Cpower supply 160W 27.6V 5.8A, 27.6V 2AIn delivery Warranty: €47.10€57.93Login to check your price PSC-160B-Cpower supply 160W 27.6V 5.8A, 27.6V 2AAvailability: In deliveryNet price:€47.10
Description
The PSC series power supplies without a casing (or with a partial casing) are intended for operation in monitoring systems, access control, alarm systems, etc. Models PSC-35, PSC-60, PSC-100 and PSC-160 with an external battery can work as UPS. Discharge protection avoids over-discharging the battery. The lack of a housing gives a lot of freedom to install power supplies inside the devices, and the input and output connectors allow you to connect the cables.
Technical Specification
-
PSC-160: 160W -output with battery charging DETAILS
Model Output Tolerance Ripple & noise Efficiency Max power Dimension PSC-160A 13.8V, 0~11.6A
13.8V, 0~4A+/-1%
(ładowanie)150mV 88% 160W 152.4x76.2x31mm PSC-160B 27.6V, 0~5.8A
27.6V, 0~2A+/-1%
(ładowanie)240mV 90% 160W 152.4x76.2x31mm
