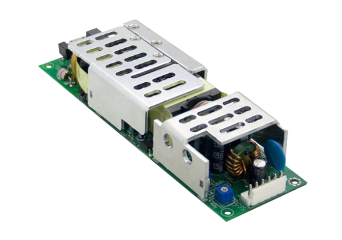

HLP-80
Power supplies for LED lighting systems with PFC Open frame: HLP-80H-12,HLP-80H-15,HLP-80H-20,HLP-80H-24,HLP-80H-30,HLP-80H-36,HLP-80H-42,HLP-80H-48,HLP-80H-54
Manufacturer: MEAN WELL
Manufacturer: MEAN WELL
- supply voltage: 90-305VAC
- built-in dc current limitation
- current limit adjustment
- class II insulation
- built-in active PFC function PF> 0.95
- short-circuit, overvoltage, overcurrent and thermal protection
- cooling with open air circulation
- working temperature -40 ~ + 70 ° C
- efficiency up to 90%
- 3in1 1-10V dimming function, PWM, resistor
- (model B compliance with a number of standards and certificates
- 3-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Price from €40.40 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHLP-80H-12LED driver 80W 12V 5AOut of stock Warranty: €40.40€49.69Login to check your price HLP-80H-12LED driver 80W 12V 5AAvailability: Out of stockNet price:€40.40 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHLP-80H-15LED driver 80W 15V 5AOut of stock Warranty: €40.40€49.69Login to check your price HLP-80H-15LED driver 80W 15V 5AAvailability: Out of stockNet price:€40.40 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHLP-80H-20LED driver 80W 20V 4AOut of stock Warranty: €40.40€49.69Login to check your price HLP-80H-20LED driver 80W 20V 4AAvailability: Out of stockNet price:€40.40 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHLP-80H-24LED driver 80W 24V 3.4AOut of stock Warranty: €40.40€49.69Login to check your price HLP-80H-24LED driver 80W 24V 3.4AAvailability: Out of stockNet price:€40.40 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHLP-80H-30LED driver 80W 30V 2.7AOut of stock Warranty: €40.40€49.69Login to check your price HLP-80H-30LED driver 80W 30V 2.7AAvailability: Out of stockNet price:€40.40 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHLP-80H-36LED driver 80W 36V 2.3AOut of stock Warranty: €40.40€49.69Login to check your price HLP-80H-36LED driver 80W 36V 2.3AAvailability: Out of stockNet price:€40.40 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHLP-80H-42LED driver 80W 42V 1.95AOut of stock Warranty: €40.40€49.69Login to check your price HLP-80H-42LED driver 80W 42V 1.95AAvailability: Out of stockNet price:€40.40 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHLP-80H-48LED driver 80W 48V 1.7AOut of stock Warranty: €40.40€49.69Login to check your price HLP-80H-48LED driver 80W 48V 1.7AAvailability: Out of stockNet price:€40.40 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHLP-80H-54LED driver 80W 54V 1.5AOut of stock Warranty: €40.40€49.69Login to check your price HLP-80H-54LED driver 80W 54V 1.5AAvailability: Out of stockNet price:€40.40
Description
The HLP series power supplies do not have an external housing, so they can be mounted inside the housing of another device, constituting an integral part of it. They have a built-in active PFC function. The models also have a dimming function that allows you to adjust the current efficiency with a voltage of 1-10VDC, the width of the pulse filling (PWM), or an external resistor. The cables can be connected to the device through the input and output connectors. The power supplies are intended for powering a wide range of devices, including lighting and decorative LED systems, incl. diodes, strips, modules, panels, halogen bulbs, LED etc.
Technical Specification
- HLP-80H: Power supplies for LED lighting systems with PFC Open frame SPECIFICATION
| Model | Output | Tolerance | Noise | Efficiency | Dimensions |
| HLP-80H-12 | 12V, 0~5A | +/-2.5% | 150mV | 87.5% | 167x53x29.5mm |
| HLP-80H-15 | 15V, 0~5A | +/-2% | 150mV | 88.5% | 167x53x29.5mm |
| HLP-80H-20 | 20V, 0~4A | +/-1% | 150mV | 89.5% | 167x53x29.5mm |
| HLP-80H-24 | 24V, 0~3.4A | +/-1% | 150mV | 90% | 167x53x29.5mm |
| HLP-80H-30 | 30V, 0~2.7A | +/-1% | 200mV | 90% | 167x53x29.5mm |
| HLP-80H-36 | 36V, 0~2.3A | +/-1% | 200mV | 90% | 167x53x29.5mm |
| HLP-80H-42 | 42V, 0~1.95A | +/-1% | 200mV | 90% | 167x53x29.5mm |
| HLP-80H-48 | 48V, 0~1.7A | +/-1% | 200mV | 90% | 167x53x29.5mm |
| HLP-80H-54 | 54V, 0~1.5A | +/-1% | 200mV | 90% | 167x53x29.5mm |
