PSC-35

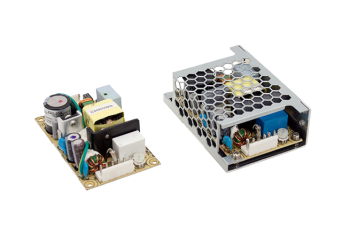

Open frame power supply with UPS function: PSC-35A, PSC-35A-C, PSC-35B, PSC-35B-C
- input voltage 90-264VAC, 124-370VDC
- protections: short circuit, overvoltage and overload protection
- protection against discharge and reverse connection of the battery
- adjustable output voltage 13.8V: 12 ~ 15V; 27.6V: 24 ~ 29
- small size, high efficiency
- version 'C' - with housing
- cooling with open air circulation
- working temperature from -30 ~ + 70 ° C
- compliance with many standards and certificates
- 2 years warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Price from €14.70 Net price
High price? Log in and buy cheaper
In delivery
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPSC-35Apower supply 35W 13.8V 2.6A, 13.8V 0.9AOut of stock Warranty: €14.70€18.08Login to check your price PSC-35Apower supply 35W 13.8V 2.6A, 13.8V 0.9AAvailability: Out of stockNet price:€14.70 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPSC-35A-Cpower supply 35W 13.8V 2.6A, 13.8V 0.9AIn delivery Warranty: €17.00€20.91Login to check your price PSC-35A-Cpower supply 35W 13.8V 2.6A, 13.8V 0.9AAvailability: In deliveryNet price:€17.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPSC-35Bpower supply 35W 27.6V 1.3A, 27.6V 0.45AOut of stock Warranty: €14.70€18.08Login to check your price PSC-35Bpower supply 35W 27.6V 1.3A, 27.6V 0.45AAvailability: Out of stockNet price:€14.70 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPSC-35B-Cpower supply 35W 27.6V 1.3A, 27.6V 0.45AOut of stock Warranty: €17.00€20.91Login to check your price PSC-35B-Cpower supply 35W 27.6V 1.3A, 27.6V 0.45AAvailability: Out of stockNet price:€17.00
Description
The PSC series power supplies without a casing (or with a partial casing) are intended for operation in monitoring systems, access control, alarm systems, etc. Models PSC-35, PSC-60, PSC-100 and PSC-160 with an external battery can work as UPS. Discharge protection avoids over-discharging the battery. The lack of a housing gives a lot of freedom to install power supplies inside the devices, and the input and output connectors allow you to connect the cables.
Technical Specification
-
PSC-35: 35.8W -output with battery charging DETAILS
Model Output Tolerance Ripple & noise Efficiency Max power Dimension PSC-35A 13.8V, 0~2.6A
13.8V, 0~1.7A+/-1%
(ładowanie)120mV 84% 35W 84.6x50.8x24mm PSC-35B 27.6V, 0~1.3A
27.6V, 0~0.45A+/-1%
(ładowanie)240mV 86% 35W 84.6x50.8x24mm
