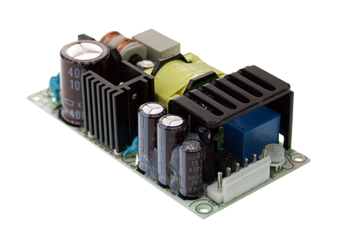

PSC-60
Open frame power supply with UPS function: PSC-60A, PSC-60B, PSC-60A-C, PSC-60B-C
- input voltage 90-264VAC, 124-370VDC
- protections: short circuit, overvoltage and overload protection
- protection against discharge and reverse connection of the battery
- adjustable output voltage 13.8V: 12 ~ 15V; 27.6V: 24 ~ 29
- AC OK alarm signal and low battery charge
- small size, high efficiency
- version 'C' - with housing
- cooling with open air circulation
- working temperature from -20 ~ + 70 ° C
- compliance with many standards and certificates
- 2 years warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
High price? Log in and buy cheaper
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPSC-60Apower supply 60W 13.8V 4.3A, 13.8V 1.5AIn stockWarranty: €19.70€24.23Login to check your price PSC-60Apower supply 60W 13.8V 4.3A, 13.8V 1.5AAvailability:In stockNet price:€19.70 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPSC-60Bpower supply 60W 27.6V 2.15A, 27.6V 0.75AOut of stock Warranty: €19.70€24.23Login to check your price PSC-60Bpower supply 60W 27.6V 2.15A, 27.6V 0.75AAvailability: Out of stockNet price:€19.70 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPSC-60A-Cpower supply 60W 13.8V 4.3A, 13.8V 1.5AIn stockWarranty: €21.80€26.81Login to check your price PSC-60A-Cpower supply 60W 13.8V 4.3A, 13.8V 1.5AAvailability:In stockNet price:€21.80 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPSC-60B-Cpower supply 60W 27.6V 2.15A, 27.6V 0.75AIn stockWarranty: €21.80€26.81Login to check your price PSC-60B-Cpower supply 60W 27.6V 2.15A, 27.6V 0.75AAvailability:In stockNet price:€21.80
Description
The PSC series power supplies without a casing (or with a partial casing) are intended for operation in monitoring systems, access control, alarm systems, etc. Models PSC-35, PSC-60, PSC-100 and PSC-160 with an external battery can work as UPS. Discharge protection avoids over-discharging the battery. The lack of a housing gives a lot of freedom to install power supplies inside the devices, and the input and output connectors allow you to connect the cables.
Technical Specification
-
PSC-60: 59W -output with battery charging DETAILS
Model Output Tolerance Ripple & noise Efficiency Max power Dimension PSC-60A 13.8V, 0~4.3A
13.8V, 0~1.5A+/-1%
(ładowanie)120mV 84% 59W 101.6x50.8x29mm PSC-60B 27.6V, 0~2.15A
27.6V, 0~0.75A+/-1%
(ładowanie)240mV 84% 59W 101.6x50.8x29mm
