EPP-150

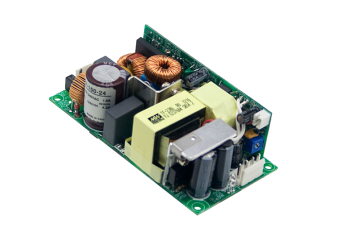

Single-output power supplies of PCB Open Frame type: EPP-150-12, EPP-150-15, EPP-150-24, EPP-150-27, EPP-150-48
Manufacturer: MEAN WELL
Manufacturer: MEAN WELL
- compact size input voltage 90-264VAC, 127-370VDC
- low power consumption in no-load condition <0.5W
- efficiency up to 93%
- active PFC function
- protections: short-circuit, overvoltage, overload and thermal protection
- regulation of the output voltage in the range of +/- 10%
- cooling with open air circulation power: 100W
- cooling with forced convection power: 150W
- working temperature from -30 ~ + 70 ° C
- compliance with many standards and certificates
- LED operation signaling
- 3-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Price from €36.80 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEPP-150-12open frame power supply 150W 12V 12.5AOut of stock Warranty: €36.80€45.26Login to check your price EPP-150-12open frame power supply 150W 12V 12.5AAvailability: Out of stockNet price:€36.80 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEPP-150-15open frame power supply 150W 15V 10AOut of stock Warranty: €36.80€45.26Login to check your price EPP-150-15open frame power supply 150W 15V 10AAvailability: Out of stockNet price:€36.80 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEPP-150-24open frame power supply 150W 24V 6.25AOut of stock Warranty: €36.80€45.26Login to check your price EPP-150-24open frame power supply 150W 24V 6.25AAvailability: Out of stockNet price:€36.80 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEPP-150-27open frame power supply 150W 27V 5.56AOut of stock Warranty: €36.80€45.26Login to check your price EPP-150-27open frame power supply 150W 27V 5.56AAvailability: Out of stockNet price:€36.80 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEPP-150-48open frame power supply 150W 48V 3.125AOut of stock Warranty: €36.80€45.26Login to check your price EPP-150-48open frame power supply 150W 48V 3.125AAvailability: Out of stockNet price:€36.80
Description
The EPP series of single-output power supplies without housing is intended for use in broadly understood industrial automation, electronics and telecommunications. The lack of an enclosure allows great freedom of installation. Parameters such as: small size, high efficiency, reliability, low power consumption in no-load condition make the power supplies perfect for installation in a powered device. The derived input and output connectors facilitate the connection of wires.
Technical Specification
-
EPP-150:100~150W DETAILS
Model Output Tolerance Ripple & noise Efficiency Dimension EPP-150-12 12V, 0~12.5A +/-2% 130mV 91.5% 101.6x50.8x29mm EPP-150-15 15V, 0~6.67A +/-2% 150mV 92% 101.6x50.8x29mm EPP-150-24 24V, 0~6.25A +/-1% 240mV 93% 101.6x50.8x29mm EPP-150-27 27V, 0~5.56A +/-1% 240mV 92% 101.6x50.8x29mm EPP-150-48 48V, 0~3.125 +/-1% 300mV 92% 101.6x50.8x29mm
