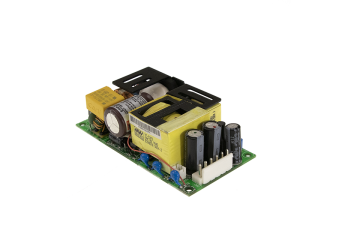

EPP-200
Single-output power supplies of PCB Open Frame type: EPP-200-12, EPP-200-15, EPP-200-24, EPP-200-27, EPP-200-48
Manufacturer: MEAN WELL
Manufacturer: MEAN WELL
- compact size input voltage 90-264VAC, 127-370VDC
- low power consumption in no-load condition <0.5W
- efficiency up to 93%
- active PFC function
- protections: short-circuit, overvoltage, overload and thermal protection
- regulation of the output voltage in the range of +/- 10%
- cooling with open air circulation: power 140W
- cooling with forced convection: power 200W
- working temperature from -30 ~ + 70 ° C
- additional output 12V 0.5A
- compliance with many standards and certificates
- LED operation signaling
- 3-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Price from €38.20 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEPP-200-12open frame power supply 200W 12V 16.7AOut of stock Warranty: €38.20€46.99Login to check your price EPP-200-12open frame power supply 200W 12V 16.7AAvailability: Out of stockNet price:€38.20 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEPP-200-15open frame power supply 200W 15V 13.4AOut of stock Warranty: €38.20€46.99Login to check your price EPP-200-15open frame power supply 200W 15V 13.4AAvailability: Out of stockNet price:€38.20 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEPP-200-24open frame power supply 200W 24V 8.4AOut of stock Warranty: €38.20€46.99Login to check your price EPP-200-24open frame power supply 200W 24V 8.4AAvailability: Out of stockNet price:€38.20 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEPP-200-27open frame power supply 200W 27V 7.5AIn stockWarranty: €38.20€46.99Login to check your price EPP-200-27open frame power supply 200W 27V 7.5AAvailability:In stockNet price:€38.20 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEPP-200-48open frame power supply 200W 48V 4.2AOut of stock Warranty: €38.20€46.99Login to check your price EPP-200-48open frame power supply 200W 48V 4.2AAvailability: Out of stockNet price:€38.20
Description
The EPP series of single-output power supplies without housing is intended for use in broadly understood industrial automation, electronics and telecommunications. The lack of an enclosure allows great freedom of installation. Parameters such as: small size, high efficiency, reliability, low power consumption in no-load condition make the power supplies perfect for installation in a powered device. The derived input and output connectors facilitate the connection of wires.
Technical Specification
-
EPP-200: 200~202W DETAILS
Model Output Tolerance Ripple & noise Efficiency Dimension EPP-200-12 12V, 0~16.7A +/-2% 100mV 93% 101.6x50.8x29mm EPP-200-15 15V, 0~13.4A +/-2.5% 100mV 93% 101.6x50.8x29mm EPP-200-24 24V, 0~8.4A +/-1% 150mV 94% 101.6x50.8x29mm EPP-200-27 27V, 0~7.5A +/-1% 150mV 94% 101.6x50.8x29mm EPP-200-48 48V, 0~4.2A +/-1% 200mV 94% 101.6x50.8x29mm
