EPP-300

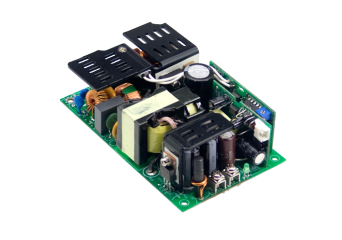

Single-output power supplies of PCB Open Frame type: EPP-300-12, EPP-300-15, EPP-300-24, EPP-300-27, EPP-300-48
Manufacturer: MEAN WELL
Manufacturer: MEAN WELL
- compact size input voltage 90-264VAC, 127-370VDC
- low power consumption in no-load condition <0.5W
- efficiency up to 93%
- active PFC function
- protections: short-circuit, overvoltage, overload and thermal protection
- regulation of the output voltage in the range of +/- 10%
- cooling with open air circulation: power 200W
- cooling with forced convection: power 300W
- working temperature from -30 ~ + 70 ° C
- additional output 12V 0.5A
- 5V 1A standby output
- compliance with many standards and certificates
- LED operation signaling
- 3-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Price from €54.00 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEPP-300-12open frame power supply 300W 12V 25AIn stockWarranty: €54.00€66.42Login to check your price EPP-300-12open frame power supply 300W 12V 25AAvailability:In stockNet price:€54.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEPP-300-15open frame power supply 300W 15V 20AOut of stock Warranty: €54.00€66.42Login to check your price EPP-300-15open frame power supply 300W 15V 20AAvailability: Out of stockNet price:€54.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEPP-300-24open frame power supply 300W 24V 12.5AIn stockWarranty: €54.00€66.42Login to check your price EPP-300-24open frame power supply 300W 24V 12.5AAvailability:In stockNet price:€54.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEPP-300-27open frame power supply 300W 27V 11.12AOut of stock Warranty: €54.00€66.42Login to check your price EPP-300-27open frame power supply 300W 27V 11.12AAvailability: Out of stockNet price:€54.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEPP-300-48open frame power supply 300W 48V 6.25AOut of stock Warranty: €54.00€66.42Login to check your price EPP-300-48open frame power supply 300W 48V 6.25AAvailability: Out of stockNet price:€54.00
Description
The EPP series of single-output power supplies without housing is intended for use in broadly understood industrial automation, electronics and telecommunications. The lack of an enclosure allows great freedom of installation. Parameters such as: small size, high efficiency, reliability, low power consumption in no-load condition make the power supplies perfect for installation in a powered device. The derived input and output connectors facilitate the connection of wires.
Technical Specification
-
EPP-300: 200~300W DETAILS
Model Output Tolerance Ripple & noise Efficiency Dimension EPP-300-12 12V, 0~25A +/-3% 120mV 90% 127x76.2x35mm EPP-300-15 15V, 0~20A +/-3% 120mV 90% 127x76.2x35mm EPP-300-24 24V, 0~12.5A +/-2% 150mV 92.5% 127x76.2x35mm EPP-300-27 27V, 0~11.12A +/-2% 200mV 93% 127x76.2x35mm EPP-300-48 48V, 0~6.25 +/-2% 250mV 93% 127x76.2x35mm
