EPP-500
PCB / open frame type power supply: EPP-500-12, EPP-500-15, EPP-500-18, EPP-500-24, EPP-500-27, EPP-500-36, EPP-500-48, EPP-500-54
Manufacturer: MEAN WELL
Manufacturer: MEAN WELL
- 5”x3” compact size
- 320W convection, 500W force air
- 550W peak power (3sec.)
- EMI for both Class I & Class II configuration
- -30~+70°C wide range operating temperature
- No load power consumption<0.5W by PS_ON control
- High efficiency up to 94%
- Protections: Short circuit / Overload / Over voltage / Over temperature
- 5Vdc standby output, 12Vdc fan supply, Power Good, Power Fail and remote sense
- Operating altitude up to 5000 meters (Note.5)
- LED indicator for power on
Price from €78.80 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEPP-500-12open frame power supply 500W 12V 41.6AOut of stock Warranty: €78.80€96.92Login to check your price EPP-500-12open frame power supply 500W 12V 41.6AAvailability: Out of stockNet price:€78.80 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEPP-500-15open frame power supply 500W 15V 33.3AOut of stock Warranty: €78.80€96.92Login to check your price EPP-500-15open frame power supply 500W 15V 33.3AAvailability: Out of stockNet price:€78.80 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEPP-500-18open frame power supply 500W 18V 27.8AOut of stock Warranty: €78.80€96.92Login to check your price EPP-500-18open frame power supply 500W 18V 27.8AAvailability: Out of stockNet price:€78.80 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEPP-500-24open frame power supply 500W 24V 20.8AOut of stock Warranty: €78.80€96.92Login to check your price EPP-500-24open frame power supply 500W 24V 20.8AAvailability: Out of stockNet price:€78.80 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEPP-500-27open frame power supply 500W 27V 18.5AOut of stock Warranty: €78.80€96.92Login to check your price EPP-500-27open frame power supply 500W 27V 18.5AAvailability: Out of stockNet price:€78.80 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEPP-500-36open frame power supply 500W 36V 13.9AOut of stock Warranty: €78.80€96.92Login to check your price EPP-500-36open frame power supply 500W 36V 13.9AAvailability: Out of stockNet price:€78.80 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEPP-500-48open frame power supply 500W 48V 10.4AOut of stock Warranty: €78.80€96.92Login to check your price EPP-500-48open frame power supply 500W 48V 10.4AAvailability: Out of stockNet price:€78.80 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEPP-500-54open frame power supply 500W 54V 9.26AOut of stock Warranty: €78.80€96.92Login to check your price EPP-500-54open frame power supply 500W 54V 9.26AAvailability: Out of stockNet price:€78.80
Description

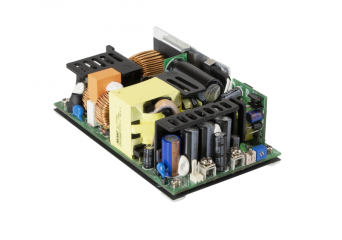

EPP-500 is a 500W highly reliable green PCB type power supply with a high power densiły on the 5” by 3” footprint. It accepts 80~264VAC input and offers various output voltages between 12V and 54V. The working efficiency is up to 94% and the extremely low no load power consumption is down below 0.5W. EPP-500 is able to be used for both Class I (with FG) and Class II (no FG) system design. EPP-500 has complete protection functions; it is complied with the international safety regulations such as TUV EN62368-1, TUV EN60335-1, UL62368-1 and lEC62368-1. EPP-500 series serves as a high price-to-performance power supply solution for various industrial applications.
Available models:
- 12V: EPP-500-12
- 15V: EPP-500-15
- 18V: EPP-500-18
- 24V: EPP-500-24
- 27V: EPP-500-27
- 36V: EPP-500-36
- 48V: EPP-500-48
- 54V: EPP-500-54
Technical Specification
EPP-500: 499-500W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension |
| EPP-500-12 | 12V, 0~41.6A | +/-3% | 200mV | 91% | 127x76.2x40mm |
| EPP-500-15 | 15V, 0~33.3A | +/-3% | 200mV | 92% | 127x76.2x40mm |
| EPP-500-18 | 18V, 0~27.8A | +/-3% | 200mV | 92.5% | 127x76.2x40mm |
| EPP-500-24 | 24V, 0~20.8A | +/-2% | 200mV | 93% | 127x76.2x40mm |
| EPP-500-27 | 27V, 0~18.5A | +/-2% | 200mV | 93.5% | 127x76.2x40mm |
| EPP-500-36 | 27V, 0~13.9A | +/-1% | 200mV | 94% | 127x76.2x40mm |
| EPP-500-48 | 48V, 0~10.4A | +/-1% | 200mV | 94% | 127x76.2x40mm |
| EPP-500-54 | 48V, 0~9.26A | +/-1% | 200mV | 94% | 127x76.2x40mm |
