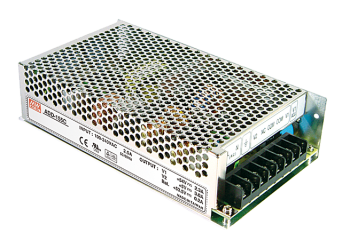

ADS-155
Enclosed power supply with UPS function: ADS-15512, ADS-15524, ADS-15548
Manufacturer: MEAN WELL
Manufacturer: MEAN WELL
- input voltage 88-264VAC, 124-370VDC
- protections: short circuit, overvoltage and overload protection
- PFC function
- ability to adjust the output voltage in the range of +/- 10%
- cooling with open air circulation (70% of power)
- 100% power with external fan cooling
- working temperature from -10 ~ + 60 ° C
- compliance with many standards and certificates
- 5V / 3A output for connecting a fan
- possibility of installation on a DIN rail (using adapters)
- 2 years warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Price from €62.90 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddADS-15512power supply 155W 12V 12.5A, 5V 3AOut of stock Warranty: €62.90€77.37Login to check your price ADS-15512power supply 155W 12V 12.5A, 5V 3AAvailability: Out of stockNet price:€62.90 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddADS-15524power supply 155W 24V 6.5A, 5V 3AOut of stock Warranty: €62.90€77.37Login to check your price ADS-15524power supply 155W 24V 6.5A, 5V 3AAvailability: Out of stockNet price:€62.90 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddADS-15548power supply 155W 48V 3.2A, 5V 3AOut of stock Warranty: €62.90€77.37Login to check your price ADS-15548power supply 155W 48V 3.2A, 5V 3AAvailability: Out of stockNet price:€62.90
Description
AD, ADS, ADD series power supplies are designed to work in monitoring systems, access control, alarm systems, etc. AD and ADD models with an external battery can work as UPS power supplies. Discharge protection avoids over-discharging the battery. The ADD power supply has an additional 5V output.
Technical Specification
-
ADS-155: 153~154W DETAILS
Model Output Tolerance Ripple & noise Efficiency Max power Dimension ADS-15512 12V, 0~12.5A
5V, 0~3.0A+/-2%
+/-3%150mV
100mV77% 153W 199x110x50mm ADS-15524 24V, 0~6.5A
5V, 0~3.0A+/-1%
+/-3%150mV
100mV82% 154W 199x110x50mm ADS-15548 48V, 0~3.2A
5V, 0~3.0A+/-1%
+/-5%240mV
100mV82% 154W 199x110x50mm
