Manufacturer: MEAN WELL
- input voltage 88-264VAC, 124-370VDC
- protections: short circuit, overvoltage and overload protection
- ability to adjust the output voltage in the range of +/- 10%
- cooling with open air circulation (70% of power)
- 100% power with fan cooling
- working temperature from -10 ~ + 60 ° C
- 5V / 3A output for connecting a fan
- compliance with many standards and certificates
- possibility of installation on a DIN rail (using adapters)
- 2 years warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Price from €33.40 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddADS-5512power supply 55W 12V 4A, 5V 4AOut of stock Warranty: €33.40€41.08Login to check your price ADS-5512power supply 55W 12V 4A, 5V 4AAvailability: Out of stockNet price:€33.40 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddADS-5524power supply 55W 24V 2.5A, 5V 4AOut of stock Warranty: €33.40€41.08Login to check your price ADS-5524power supply 55W 24V 2.5A, 5V 4AAvailability: Out of stockNet price:€33.40
Description

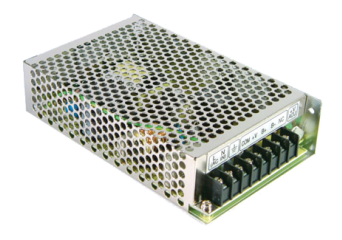

AD, ADS, ADD series power supplies are designed to work in monitoring systems, access control, alarm systems, etc. AD and ADD models with an external battery can work as UPS power supplies. Discharge protection avoids over-discharging the battery. The ADD power supply has an additional 5V output for connecting an external fan.
Technical Specification
-
ADS-55: 51~58W DETAILS
Model Output Tolerance Ripple & noise Efficiency Max power Dimension ADS-5512 12V, 0~4.0A
5V, 0~4.0A+/-1%
+/-3%100mV
100mV74% 51W 159x97x38mm ADS-5524 24V, 0~2.5A
5V, 0~4.0A+/-1%
+/-3%100mV
100mV74% 58W 159x97x38mm
