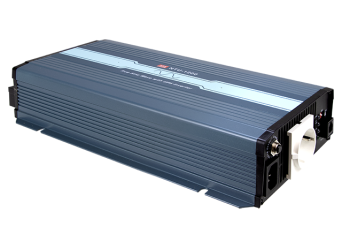

NTU-1200
DC / AC converter with UPS mode and 1200W power: NTU-1200-212, NTU-1200-224, NTU-1200-248
- Compact housing and low weight
- Built-in UPS mode (AC by-pass)
- True sine wave at the output (THD <3%)
- Overload capacity up to 2000W (60ms)
- Fan cooling
- Low power consumption in no-load state (<1.5W)
- A wide range of acceptable operating temperatures: -25 ~ + 70 ° C
- LED indicator of device status
- Short-circuit, overload and temperature protection
- Reverse polarity protection, low and high voltage alarm on input
- Dedicated to lead-acid and lithium-ion batteries
- Built-in RS-232 communication protocol
- Remote control possible
- 3-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
High price? Log in and buy cheaper
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNTU-1200-212EUDC/AC inverter EU 1200W 10.5~15V-230V 50HzIn stockWarranty: €267.40€328.90Login to check your price NTU-1200-212EUDC/AC inverter EU 1200W 10.5~15V-230V 50HzAvailability:In stockNet price:€267.40 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNTU-1200-224EUDC/AC inverter EU 1200W 21~30V-230V 50HzIn stockWarranty: €267.40€328.90Login to check your price NTU-1200-224EUDC/AC inverter EU 1200W 21~30V-230V 50HzAvailability:In stockNet price:€267.40 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNTU-1200-248EUDC/AC inverter EU 1200W 42~60V-230V 50HzIn delivery Warranty: €267.40€328.90Login to check your price NTU-1200-248EUDC/AC inverter EU 1200W 42~60V-230V 50HzAvailability: In deliveryNet price:€267.40
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCarry handleCarry handle for NPB, NTS, NTU seriesIn stockWarranty: €5.10€6.27Login to check your price Carry handleCarry handle for NPB, NTS, NTU seriesAvailability:In stockNet price:€5.10
Description
The compact DC / AC converter MEAN WELL NTU-1200 with a rated power of 1200W and a real sine wave (true sine, THD> 3%) offers the user a configurable output voltage with the following values: 200/220/230 / 240VAC. The selection of the output voltage and frequency is easy with the use of a switch on the housing. The device can be powered by 12/24 / 48VDC with current values of 120/60 / 30A respectively. The converter works with both lithium-ion and lead-acid batteries.
The device is protected against excessive temperature, short circuit and overcurrent. In order to minimize the risk of excessive battery discharge, the NTU-1200 converter is equipped with an alarm. After the alarm is triggered and the voltage drops further, the device turns off, protecting the battery.
It is also possible to temporarily overload the converter: 1380W (3 min.), 1800W (10 s), 2000W (0.6 s). This functionality allows you to connect a device with a higher inrush current (e.g. electric tools).
The NTU-1200 converter is equipped with a remote control function using an accessory MEAN WELL controller. The RS-232 communication port enables constant monitoring of the device's operating parameters and reacting to any changes (e.g. when installing off-grid panels).
The NTU series is equipped with a UPS mode: during normal operation, the converter supplies the receivers directly from the AC mains. In the event of a mains voltage failure, the converter will switch over to battery power within 10 ms, thus maintaining the power supply.
Rys.1 Sample application diagram NTU-1200
Technical Specification
- NTU-1200: DC / AC converter with UPS mode and 1200W power - SPECIFICATION
| Model | Power | DC input | AC output | Socket | Efficiency | Dimensions |
| NTS-1200-212EU | 1200W | 10-16.5 | 230/50 | EU | 90% | 333x184x70mm |
| NTS-1200-224EU | 1200W | 20-33 | 230/50 | EU | 93% | 333x184x70mm |
| NTS-1200-248EU | 1200W | 40-66 | 230/50 | EU | 93% | 333x184x70mm |
