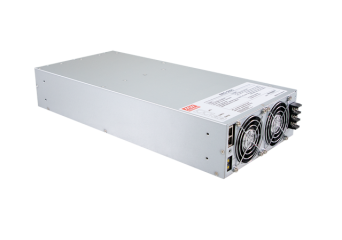

ERG-5000
4-channel DC/AC 5kW converter
- wide range of input voltages: 10~60VDC / 60~420VDC
- efficiency up to 91%
- Overload, temperature, overvoltage protection
- Protection against too low and high input voltage
- CANBus communication bus
- it is possible to connect up to 64 devices in the CANBus bus
- 5 years warranty
Prices with discounts and exact stock levels are visible after logging in to the e-shop.
Price from €2,699.20 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
ERG-5000
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddERG-5000DC/AC inverter 5000W 10~60V-230V 50HzOut of stock Warranty: €2,699.20€3,320.02Login to check your price ERG-5000DC/AC inverter 5000W 10~60V-230V 50HzAvailability: Out of stockNet price:€2,699.20 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddERG-5000HDC/AC inverter 5000W 60~420V-230V 50HzOut of stock Warranty: €2,699.20€3,320.02Login to check your price ERG-5000HDC/AC inverter 5000W 60~420V-230V 50HzAvailability: Out of stockNet price:€2,699.20
Description
ERG-5000 is a DC/AC converter dedicated to returning energy to the grid. The device has a high efficiency (up to 91%) and 4 independent input channels. The ERG-5000 series also provides canbus remote control and monitoring functions. The input voltage range is 10~60Vdc for ERG-5000 models, and 60~420Vdc for ERG-500H models.
The device will be used, for example, in battery testing systems, when testing the aging of AC/DC power supplies.
Technical Specification
- ERG-5000 - 4-channel DC/AC 5kW converter (SPECIFICATION)
| Model | Continuous power | Input VDC | Output VAC/Hz | Socket | Efficiency | Dimensions |
| ERG-5000 | 2600~4320VA (10~12VDC) 4320~4400VA (12~60VDC) |
10 ~ 60VDC |
180 ~ 264 ±5VAC 47 ~ 63Hz |
Plug-in connector | 88% | 504x211x83.5mm |
| ERG-5000H | 4500~4600VA (60~420VDC) | 60 ~ 420VDC |
180 ~ 264 ±5VAC 47 ~ 63Hz |
Plug-in connector | 91% | 504x211x83.5mm |
