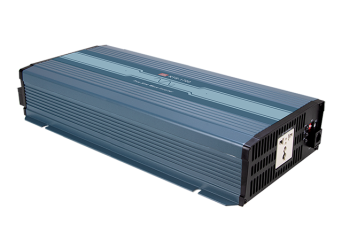

NTS-1700

Compact DC / AC converter MEAN WELL NTS-1700 with a rated power of 1700W and real sine wave (true sine, THD> 3%) offers the user a configurable output voltage with the following values: 200/220/230 / 240VAC for models NTS-1700-212, NTS-1700-224, NTS-1700-248. The selection of the output voltage and frequency is easy with the use of a switch on the housing. The device can be powered by 12/24 / 48VDC with current values ​​of 120/60 / 30A respectively. The converter works with both lithium-ion and lead-acid batteries.

The device is protected against excessive temperature, short circuit and overcurrent. In order to minimize the risk of excessive battery discharge, the NTS-1700 converter is equipped with an alarm. After the alarm is triggered and the voltage drops further, the device turns off, protecting the battery.

It is also possible to temporarily overload the converter: 2000W (3 min.), 2550W (10 s), 3400W (0.6 s). This functionality allows you to connect a device with a higher inrush current (e.g. electric tools).

The NTS-1700 converter is equipped with a remote control function using the accessory MEAN WELL controller. The RS-232 communication port enables constant monitoring of the device's operating parameters and reacting to any changes (e.g. when installing off-grid panels).

The MEAN WELL NTS-1700 converter can be used wherever there is no access to the power grid, e.g.

Use of off-grid panels in home systems, e.g.

• on a plot, summer house
• Application with caravans and yachts for the conversion of energy from batteries
• Application on construction sites: e.g. for battery operation of mast floodlights or electric tools
• Backup power, e.g. emergency lighting, motors
