Manufacturer: MEAN WELL
- Very wide input voltage range 150 - 1500 VDC
- Operating temperature from -40 to +80°C
- P models - PCB version
- ST models - screw terminal version
- DR models - version for mounting on a DIN rail
- Free air cooling
- Can be mounted on a DIN TS-35/7.5 or 15 rail
- Protections: short-circuit, overload, overvoltage, reverse polarity protection
- I/O isolation 4 kVDC
- Possibility of installation at an altitude of up to 5000m
- 3 years warranty
Prices with discounts and exact stock levels are visible after logging in to the e-shop.
Price from €36.80 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDDRH-30-12PDC/DC converter 30W 150~1500V-12V 2.5AOut of stock Warranty: €36.80€45.26Login to check your price DDRH-30-12PDC/DC converter 30W 150~1500V-12V 2.5AAvailability: Out of stockNet price:€36.80 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDDRH-30-15PDC/DC converter 30W 150~1500V-15V 2AOut of stock Warranty: €36.80€45.26Login to check your price DDRH-30-15PDC/DC converter 30W 150~1500V-15V 2AAvailability: Out of stockNet price:€36.80 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDDRH-30-24PDC/DC converter 30W 150~1500V-24V 1.25AOut of stock Warranty: €36.80€45.26Login to check your price DDRH-30-24PDC/DC converter 30W 150~1500V-24V 1.25AAvailability: Out of stockNet price:€36.80 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDDRH-30-48PDC/DC converter 30W 150~1500V-48V 0.625AOut of stock Warranty: €36.80€45.26Login to check your price DDRH-30-48PDC/DC converter 30W 150~1500V-48V 0.625AAvailability: Out of stockNet price:€36.80 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDDRH-30-12STDC/DC converter 30W 150~1500V-12V 2.5AOut of stock Warranty: €42.00€51.66Login to check your price DDRH-30-12STDC/DC converter 30W 150~1500V-12V 2.5AAvailability: Out of stockNet price:€42.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDDRH-30-15STDC/DC converter 30W 150~1500V-15V 2AOut of stock Warranty: €42.00€51.66Login to check your price DDRH-30-15STDC/DC converter 30W 150~1500V-15V 2AAvailability: Out of stockNet price:€42.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDDRH-30-24STDC/DC converter 30W 150~1500V-24V 1.25AOut of stock Warranty: €42.00€51.66Login to check your price DDRH-30-24STDC/DC converter 30W 150~1500V-24V 1.25AAvailability: Out of stockNet price:€42.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDDRH-30-48STDC/DC converter 30W 150~1500V-48V 0.625AOut of stock Warranty: €42.00€51.66Login to check your price DDRH-30-48STDC/DC converter 30W 150~1500V-48V 0.625AAvailability: Out of stockNet price:€42.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDDRH-30-12DRDC/DC converter 30W 150~1500V-12V 2.5AOut of stock Warranty: €42.00€51.66Login to check your price DDRH-30-12DRDC/DC converter 30W 150~1500V-12V 2.5AAvailability: Out of stockNet price:€42.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDDRH-30-15DRDC/DC converter 30W 150~1500V-15V 2AOut of stock Warranty: €42.00€51.66Login to check your price DDRH-30-15DRDC/DC converter 30W 150~1500V-15V 2AAvailability: Out of stockNet price:€42.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDDRH-30-24DRDC/DC converter 30W 150~1500V-24V 1.25AOut of stock Warranty: €42.00€51.66Login to check your price DDRH-30-24DRDC/DC converter 30W 150~1500V-24V 1.25AAvailability: Out of stockNet price:€42.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDDRH-30-48DRDC/DC converter 30W 150~1500V-48V 0.625AOut of stock Warranty: €42.00€51.66Login to check your price DDRH-30-48DRDC/DC converter 30W 150~1500V-48V 0.625AAvailability: Out of stockNet price:€42.00
Description

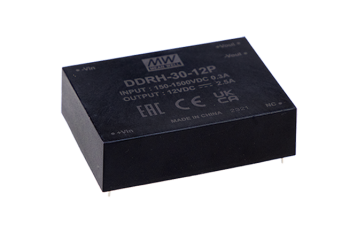

The DDRH-30 is a MEAN WELL DC/DC converter with a wide input voltage range. The devices are available in three different versions: models marked with P are dedicated to soldering onto a PCB; models marked ST have a screw terminal; DR models are dedicated for mounting on a DIN rail.
The devices are dedicated to photovoltaic and wind installations, and other applications where conversion from high DC to low voltage is required.
Technical Specification
- DDRH-30: DC/DC converter with wide input voltage range 30W SPECIFICATION
| Model | Output | Input | Ripple&Noise | Efficiency | Dimensions |
| DDRH-30-12 P/ST/DR | 150~1500V | 12V, 0~2.5A | 100mV | 85% |
model P: 89x63.5x25mm, model ST: 135x70x32mm, model DR: 135x70x43.5mm |
| DDRH-30-15 P/ST/DR | 150~1500V | 15V, 0~2A | 100mV | 88% | |
| DDRH-30-24 P/ST/DR | 150~1500V | 24V, 0~1.25A | 100mV | 91% | |
| DDRH-30-48 P/ST/DR | 150~1500V | 48V, 0~0.625A | 150mV | 91% |
