Manufacturer: MEAN WELL
- input voltage range 3 ~ 14VDC
- high efficiency up to 90%
- output voltage adjustment
- short circuit protection
- remote on / off
- cooling in open air circulation
- working temperature -40 ~ + 82 ° C
- low cost, high reliability
- 3-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Price from €3.80 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSPOL-01DC/DC converter 5.5W 3~14V/5V 1AOut of stock Warranty: €3.80€4.67Login to check your price SPOL-01DC/DC converter 5.5W 3~14V/5V 1AAvailability: Out of stockNet price:€3.80
Description

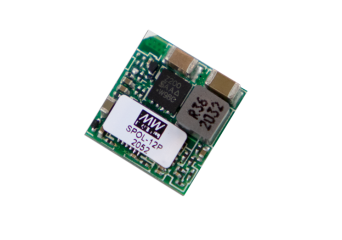

MEAN WELL SPOL-01 is a dc / dc converter in the form of a PCB module designed for soldering. Its characteristic features are small dimensions, high efficiency and the ability to remotely regulate the output voltage. High quality, reliability, durability and long service life are the basic advantages of MEAN WELL inverters.
Technical Specification
- SPOL-01: DC / DC converter, adjustable, PCB module type SPECIFICATION
| Model | Input | Output | Ripple&Noise | Efficiency | Dimensions |
| SPOL-01 | 3~14V | 5.5V, max.1A | 40mV | 90% | 12.4x12.4x4.0mm |
| 5V, max.1A | 40mV | 89.5% | 12.4x12.4x4.0mm | ||
| 3.3V, max.1A | 40mV | 86% | 12.4x12.4x4.0mm | ||
| 2.5V, max.1A | 40mV | 83% | 12.4x12.4x4.0mm | ||
| 1.8V, max.1A | 40mV | 79% | 12.4x12.4x4.0mm | ||
| 1.5V, max.1A | 40mV | 75% | 12.4x12.4x4.0mm | ||
| 1.2, max.1A | 40mV | 71% | 12.4x12.4x4.0mm | ||
| 0.9V, max.1A | 40mV | 67% | 12.4x12.4x4.0mm |
