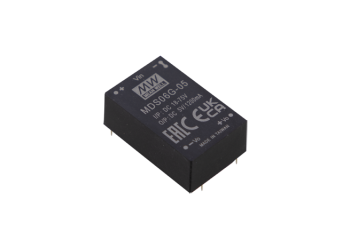

MDS06
1-output medical DC / DC converter 6W
- Compliance with medical standards 1xMOPP / 2xMOOP acc. To ES60601-1
- Permissible operating temperatures from -40 to + 90 ° C
- Low leakage current <5uA
- Short circuit protection
- Overload protection
- Short-circuit withstand strength I / O 6kVDC / 4.2kVAC
- 3-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Price from €14.40 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMDS06F-05DC/DC module 6W 9~36V/ 5V 1.2AOut of stock Warranty: €14.40€17.71Login to check your price MDS06F-05DC/DC module 6W 9~36V/ 5V 1.2AAvailability: Out of stockNet price:€14.40 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMDS06F-12DC/DC module 6W 9~36V/ 12V 0.5AOut of stock Warranty: €14.40€17.71Login to check your price MDS06F-12DC/DC module 6W 9~36V/ 12V 0.5AAvailability: Out of stockNet price:€14.40 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMDS06F-15DC/DC module 6W 9~36V/ 15V 0.4AOut of stock Warranty: €14.40€17.71Login to check your price MDS06F-15DC/DC module 6W 9~36V/ 15V 0.4AAvailability: Out of stockNet price:€14.40 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMDS06G-05DC/DC module 6W 18~75V/ 5V 1.2AOut of stock Warranty: €14.40€17.71Login to check your price MDS06G-05DC/DC module 6W 18~75V/ 5V 1.2AAvailability: Out of stockNet price:€14.40 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMDS06G-12DC/DC module 6W 18~75V/ 12V 0.5AOut of stock Warranty: €14.40€17.71Login to check your price MDS06G-12DC/DC module 6W 18~75V/ 12V 0.5AAvailability: Out of stockNet price:€14.40 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMDS06G-15DC/DC module 6W 18~75V/ 15V 0.4AOut of stock Warranty: €14.40€17.71Login to check your price MDS06G-15DC/DC module 6W 18~75V/ 15V 0.4AAvailability: Out of stockNet price:€14.40
Description
A series of single-output converters for through hole and surface mounting is designed for use in electronics. A wide range of input voltages, models with different power and output voltages ensure great flexibility of applications. High quality, reliability, durability and long service life are the basic advantages of MEAN WELL inverters.
Technical Specification
- MDS06: 1-output medical DC / DC converter 6W SPECIFICATION
| Model | Input | Output | Ripple&Noise | Dimensions |
| MDS06F-05 | 9~36VDC | 5VDC | 100mVp-p | 31.8x20.3x12.2mm |
| MDS06F-12 | 9~36VDC | 12VDC | 100mVp-p | 31.8x20.3x12.2mm |
| MDS06F-15 | 9~36VDC | 15VDC | 100mVp-p | 31.8x20.3x12.2mm |
| MDD06F-05 | 9~36VDC | 5VDC | 100mVp-p | 31.8x20.3x12.2mm |
| MDD06F-12 | 9~36VDC | 12VDC | 100mVp-p | 31.8x20.3x12.2mm |
| MDD06F-15 | 9~36VDC | 15VDC | 100mVp-p | 31.8x20.3x12.2mm |
| MDS06G-05 | 18~75VDC | 5VDC | 100mVp-p | 31.8x20.3x12.2mm |
| MDS06G-12 | 18~75VDC | 12VDC | 100mVp-p | 31.8x20.3x12.2mm |
| MDS06G-15 | 18~75VDC | 15VDC | 100mVp-p | 31.8x20.3x12.2mm |
| MDD06G-05 | 18~75VDC | 5VDC | 100mVp-p | 31.8x20.3x12.2mm |
| MDD06G-12 | 18~75VDC | 12VDC | 100mVp-p | 31.8x20.3x12.2mm |
| MDD06G-15 | 18~75VDC | 15VDC | 100mVp-p | 31.8x20.3x12.2mm |
