- Charger for lead-acid batteries (Gel, flooded and AGM) and Li-ion batteries (lithium iron and lithium manganese)
- Built-in default 3 stage charging curves and programmable curve
- Built-in I2C interface, PMBus protocol (Optional CANBus protocol)
- Output voltage and current programmable
- Universal AC input / Full range (Withstand 300VAC surge input for 5 seconds)
- Built-in active PFC function
- Forced air cooling by built-in DC fan
- Built-in OR-ing FET, support hot swap (hot plug)
- Active current sharing up to 8000W for one 19” rack shelf
- Protections: Battery under voltage / Battery no connection / Short circuit / Over voltage / Over temperature
- Optional conformal coating
High price? Log in and buy cheaper
Free shipping from €300
Promocja cenowa na model HDR-15-5
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRCB-1600-12battery charger 1600W 14.4V 100AOut of stock Warranty: €429.40€528.16Login to check your price RCB-1600-12battery charger 1600W 14.4V 100AAvailability: Out of stockNet price:€429.40 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRCB-1600-24battery charger 1600W 28.8V 55AOut of stock Warranty: €429.40€528.16Login to check your price RCB-1600-24battery charger 1600W 28.8V 55AAvailability: Out of stockNet price:€429.40 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRCB-1600-48battery charger 1600W 57.6V 27.5AOut of stock Warranty: €429.40€528.16Login to check your price RCB-1600-48battery charger 1600W 57.6V 27.5AAvailability: Out of stockNet price:€429.40
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Addcase 1U for RACK 19" with IEC inletOut of stock Warranty: €633.80€779.57Login to check your price case 1U for RACK 19" with IEC inletAvailability: Out of stockNet price:€633.80 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Addcase 1U for RACK 19" with terminal blockOut of stock Warranty: €633.80€779.57Login to check your price case 1U for RACK 19" with terminal blockAvailability: Out of stockNet price:€633.80
Description

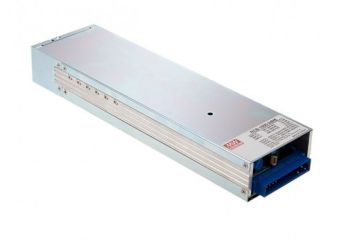

RCB-1600 series is a single output 1600W AC/DC charger with 1U low profile (41 mm). It is an intelligent charger with embedded charging curves which are programmable. Users are also able to adjust the charging voltage and current via the built-in potentiometer, output programmable functions, PMBus, or CANBus to charge different types of batteries, such as lead-acid batteries and li-ion batteries. Various protection mechanisms as well as the temperature compensation function are provided to assure the normal and safe operations. The rack-mountable attribute allows ROB-1600 to perfectly suit the charging, backup or constant current source applications exploiting the rack architecture or central management.
Available models:
- 14.4V: RCB-1600-12
- 28.8V: RCB-1600-24
- 57.6V: RCB-1600-48
Technical Specification
RCB-1600: 1600W active PFC DETAILS
| Model | Output | Suggested capacity | Efficiency | Dimension |
| RCB-1600-12 | 14.4V, 100A | 330~1000Ah | 87% | 300x85x41mm |
| RCB-1600-24 | 28.8V, 55A | 180~550Ah | 90.5% | 300x85x41mm |
| RCB-1600-48 | 57.6V, 27.5A | 90~270Ah | 93% | 300x85x41mm |
