- Universal AC input / Full range (Withstand 300VAC surge input for 5 seconds)
- Built-in active PFC function
- High efficiency up to 93%
- Forced air cooling by built-in DC fan
- Output voltage and constant current level programmable
- Built-in OR-ing FET, support hot swap (hot plug)
- Active current sharing up to 8000W for one 19” rack shelf
- Built-in I2C interface, PMBus protocol (Optional CANBus protocol)
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Optional conformal coating
High price? Log in and buy cheaper
Free shipping from €300
Promocja cenowa na model HDR-15-5
RCP-1600
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRCP-1600-12RACK 19" power supply 1500W 12V 125AOut of stock Warranty: €479.20€589.42Login to check your price RCP-1600-12RACK 19" power supply 1500W 12V 125AAvailability: Out of stockNet price:€479.20 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRCP-1600-24RACK 19" power supply 1600W 24V 67AOut of stock Warranty: €479.20€589.42Login to check your price RCP-1600-24RACK 19" power supply 1600W 24V 67AAvailability: Out of stockNet price:€479.20 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRCP-1600-48RACK 19" power supply 1600W 48V 33.5AOut of stock Warranty: €479.20€589.42Login to check your price RCP-1600-48RACK 19" power supply 1600W 48V 33.5AAvailability: Out of stockNet price:€479.20
Description

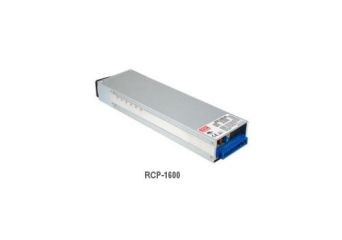

RCP-1600 is a 1.6KW single output rack mountable front end AC/DC power supply with a 1U low profile and a high power density up to 25W/inch3. This series operates for 90~264VAC input voltage and offers the models with the DC output mostly demanded from the industry. Each model is cooled by the built-in DC fan with fan speed control, working for the temperature up to 70°C. RCP-1600 provides vast design flexibility by equipping various built-in functions such as the PMBus and CANBus communication protocol, output programming, active current sharing (up to 24000W via three 19” rack shelves, RHP-1U), remote control, auxiliary power, alarm signal, etc. Maximum number that can be monitored by master controller in communication shall be 15 power supplies.
Available models:
- 12V: RCP-1600-12
- 24V: RCP-1600-24
- 48V: RCP-1600-48
Technical Specification
RCP-1600: 1500-1608W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension |
| RCP-1600-12 | 12V, 0~125A | +/-1% | 150mV | 88.5% | 300x85x41mm |
| RCP-1600-24 | 24V, 0~67A | +/-1% | 200mV | 91% | 300x85x41mm |
| RCP-1600-48 | 48V, 0~33.5A | +/-1% | 300mV | 93% | 300x85x41mm |
