ERDN20

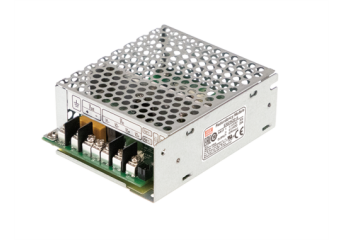

20A power supply redundancy module: ERDN20-12, ERDN20-24, ERDN20-48, ERDN20-5
Manufacturer: MEAN WELL
Manufacturer: MEAN WELL
- Support 1+1 and N+1 redundancy system
- 2 channels input and 1 output
- Suitable for redundancy operation of 5V/12V/24V/48V system
- Output current up to 20A
- Cooling by free air convection
- -40~+80ºC ultra-wide operating temperature (>+60ºC derating)
- Built-in 2 channels DC OK signal and alarm relay contact
Price from €22.60 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddERDN20-12power supply redundancy module 12V 20AIn stockWarranty: €22.60€27.80Login to check your price ERDN20-12power supply redundancy module 12V 20AAvailability:In stockNet price:€22.60 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddERDN20-24power supply redundancy module 24V 20AIn stockWarranty: €22.60€27.80Login to check your price ERDN20-24power supply redundancy module 24V 20AAvailability:In stockNet price:€22.60 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddERDN20-48power supply redundancy module 48V 20AIn stockWarranty: €22.60€27.80Login to check your price ERDN20-48power supply redundancy module 48V 20AAvailability:In stockNet price:€22.60 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddERDN20-5power supply redundancy module 12V 20AIn stockWarranty: €22.60€27.80Login to check your price ERDN20-5power supply redundancy module 12V 20AAvailability:In stockNet price:€22.60
Description
The ERDN20 series is a 20A redundancy module that can be used with a power supply to improve overall system operation reliability. Product key features include:5V/12V/24V/48V input voltage for selection, support N+1 and 1+1 redundancy systems, built-in two rails DC input contacts and single output. The MOSFET technology implemented can reduce heat loss and reduce the voltage difference between the input and output voltages, built-in 2 channels DC OK relay contacts for monitoring output status, ultra-wide operating temperature of -40 to +80ºC.
Available models:
- 5V: ERDN20-5
- 12V: ERDN20-12
- 24V: ERDN20-24
- 48V: ERDN20-48
Technical Specification
ERDN20: 20A DETAILS
| Model | Output | Reverse voltage (max) | Input current (max) | Dimension |
| ERDN20 | 5,12,24,48V, 20A | 60V | 20A | 82x99x36mm |
