RPD-60

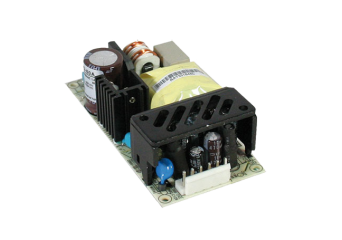

2 - output medical power supplies, PCB Open Frame type, with PFC function: RPD-60A, RPD-60B
Manufacturer: MEAN WELL
Manufacturer: MEAN WELL
- input voltage 90-264VAC 120-370VDC
- protections: short circuit, overvoltage and overload protection
- adjustable output voltage in the range of -5 ~ + 10%
- cooling with open air circulation
- working temperature -20 ~ + 65 ° C
- compliance with medical standards
- low leakage current
- small size
- 3-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Price from €15.30 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRPD-60Aopen frame power supply 60W 5V, 12VOut of stock Warranty: €15.30€18.82Login to check your price RPD-60Aopen frame power supply 60W 5V, 12VAvailability: Out of stockNet price:€15.30 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRPD-60Bopen frame power supply 60W 5V, 24VOut of stock Warranty: €15.30€18.82Login to check your price RPD-60Bopen frame power supply 60W 5V, 24VAvailability: Out of stockNet price:€15.30
Description
The series of 2,3-output medical power supplies without housing is designed for use in medical applications, automation, electronics, telecommunications, etc. Compliance with medical standards guarantees a high degree of safety. The lack of an enclosure allows great freedom of installation. Small size, high quality and reliability make the power supplies perfect for installation in a powered device. The derived input and output connectors facilitate the connection of wires.
Technical Specification
-
RPD-60: 54~59W DETAILS
Model Output Tolerance Ripple & noise Efficiency Max power Dimension RPD-60A 5V, 0.5~5.5A
12V, 0.2~3.2A+3%,-4%
+/-6%80mV
80mV78% 54W 101.6x50.8x29mm RPD-60B 5V, 0.4~6.0A
24V, 0.2~2.6A+3%,-2%
+8%,-4%80mV
100mV82% 59W 101.6x50.8x29mm
