Series PPS is phased-out by the manufacturer and are available while stock lasts. |

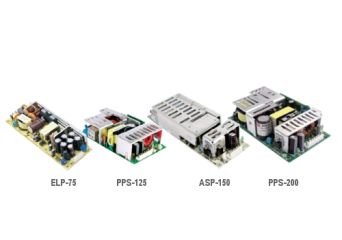

Series ELP, PPS 75-200W
Single output power supply typu PCB Open Frame: PPS-200-5, PPS-200-12, PPS-200-24, ELP-75-3.3, ELP-75-5, ELP-75-12, ELP-75-15, ELP-75-24, ELP-75-36, ELP-75-48
Manufacturer: MEAN WELL
Manufacturer: MEAN WELL
- Universal AC input / Full range
- Built-in active PFC function
- High efficiency
- Optional L-Bracket and cover
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- LED indicator for power on
Price from €66.20 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Series ELP, PPS 75-200W
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPPS-200-5open frame power supply 200W 5V 36AIn stockWarranty: €66.20€81.43Login to check your price PPS-200-5open frame power supply 200W 5V 36AAvailability:In stockNet price:€66.20 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPPS-200-24open frame power supply 200W 24V 8.3AIn stockWarranty: €66.20€81.43Login to check your price PPS-200-24open frame power supply 200W 24V 8.3AAvailability:In stockNet price:€66.20
Description
- Universal AC input / Full range
- Built-in active PFC function
- High efficiency
- Optional L-Bracket and cover
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- LED indicator for power on
Available models:
- 3.3V: ELP-75-3.3, PPS-125-3.3
- 5V: ELP-75-5, PPS-125-5, PPS-200-5
- 12V: ELP-75-12, PPS-125-12, ASP-150-12, PPS-200-12
- 13.5: PPS-125-13.5
- 15V: ELP-75-15, PPS-125-15, ASP-150-15, PPS-200-15
- 20V: ASP-150-20
- 24V: ELP-75-24, PPS-125-24, ASP-150-24, PPS-200-24
- 27V: PPS-125-27, PPS-200-27
- 36V: ELP-75-36
- 48V: ELP-75-48, PPS-125-48, ASP-150-48, PPS-200-48
Technical Specification
ELP-75: 50~77W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension |
| ELP-75-3.3 | 3.3V, 0~15A | +/-2% | 80mV | 80% | 175x60x30mm |
| ELP-75-5 | 5V, 0~15A | +/-2% | 80mV | 82% | 175x60x30mm |
| ELP-75-12 | 12V, 0~6.25A | +/-2% | 120mV | 88% | 175x60x30mm |
| ELP-75-15 | 15V, 0~5A | +/-2% | 150mV | 88% | 175x60x30mm |
| ELP-75-24 | 24V, 0~3.15A | +/-1% | 240mV | 89% | 175x60x30mm |
| ELP-75-36 | 36V, 0~2.1A | +/-1% | 280mV | 89% | 175x60x30mm |
| ELP-75-48 | 48V, 0~1.6A | +/-1% | 300mV | 89% | 175x60x30mm |
PPS-125: 66~125W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension |
| PPS-125-3.3 | 3.3V, 0~25A | +/-2% | 100mV | 70% | 127x76.2x34.6mm |
| PPS-125-5 | 5V, 0~25A | +/-2% | 100mV | 79% | 127x76.2x34.6mm |
| PPS-125-12 | 12V, 0~10.5A | +/-2% | 100mV | 80% | 127x76.2x34.6mm |
| PPS-125-13.5 | 13.5V, 0~9.3A | +/-2% | 100mV | 80% | 127x76.2x34.6mm |
| PPS-125-15 | 15V, 0~8.4A | +/-2% | 100mV | 80% | 127x76.2x34.6mm |
| PPS-125-24 | 24V, 0~5.2A | +/-1% | 150mV | 83% | 127x76.2x34.6mm |
| PPS-125-27 | 27V, 0~4.6A | +/-1% | 150mV | 83% | 127x76.2x34.6mm |
| PPS-125-48 | 48V, 0~2.6A | +/-1% | 250mV | 84% | 127x76.2x34.6mm |
ASP-150: 132~154W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension |
| ASP-150-12 | 12V, 0~11A | +/-2% | 150mV | 88% | 169x60.7x28.5mm |
| ASP-150-15 | 15V, 0~9.5A | +/-2% | 180mV | 88% | 169x60.7x28.5mm |
| ASP-150-20 | 20V, 0~7.5A | +/-1% | 200mV | 90% | 169x60.7x28.5mm |
| ASP-150-24 | 24V, 0~6.3A | +/-1% | 240mV | 90% | 169x60.7x28.5mm |
| ASP-150-48 | 48V, 0~3.2A | +/-1% | 240mV | 89% | 169x60.7x28.5mm |
PPS-200: 130~200W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension |
| PPS-200-5 | 5V, 0~36A | +/-4% | 100mV | 86% | 127x76.2x34.6mm |
| PPS-200-12 | 12V, 0~16.6A | +/-3% | 100mV | 89% | 127x76.2x34.6mm |
| PPS-200-15 | 15V, 0~13.3A | +/-3% | 100mV | 89% | 127x76.2x34.6mm |
| PPS-200-24 | 24V, 0~8.3A | +/-2% | 1500mV | 89% | 127x76.2x34.6mm |
| PPS-200-27 | 27V, 0~7.4A | +/-2% | 150mV | 89% | 127x76.2x34.6mm |
| PPS-200-48 | 48V, 0~4.167A | +/-2% | 250mV | 90% | 127x76.2x34.6mm |
