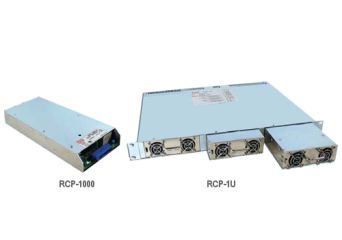

Series RCP 1000-8000W

Rack 19 power system: RCP-1000

  • Universal AC input / Full range
  • Built-in active PFC function
  • High efficiency up to 89%
  • Forced air cooling by built-in DC fan
  • Output voltage programmable
  • Built-in OR-ing diode, support hot swap (hot plug)
  • Active current sharing up to 3000W for one 19” rack shelf
  • Built-in 12C interface (RCP-1000-C models only)
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Optional conformal coating
Price from €270.80 Net price

High price? Log in and buy cheaper

In stock

Place the order by 12:00, the package will be shipped on the same day

Free shipping from €300

See 8 models

Promocja cenowa na model HDR-15-5

Product intended for professional use only

Models

  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    RCP-1000-12
    RACK 19" power supply 720W 12V 60A
    In stock
    Warranty:
    €310.20
    €381.55
    Login to check your price
    6 pieces in box
    RCP-1000-12
    RACK 19" power supply 720W 12V 60A
    Availability:
    In stock
    Net price:
    €310.20
    6 pieces in box
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    RCP-1000-24
    RACK 19" power supply 1000W 24V 40A
    Out of stock Warranty:
    €310.20
    €381.55
    Login to check your price
    6 pieces in box
    RCP-1000-24
    RACK 19" power supply 1000W 24V 40A
    Availability: Out of stock
    Net price:
    €310.20
    6 pieces in box
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    RCP-1000-48
    RACK 19" power supply 1000W 48V 21A
    Out of stock Warranty:
    €310.20
    €381.55
    Login to check your price
    6 pieces in box
    RCP-1000-48
    RACK 19" power supply 1000W 48V 21A
    Availability: Out of stock
    Net price:
    €310.20
    6 pieces in box
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    RCP-1000-12-C
    RACK 19" power supply 720W 12V 60A
    Out of stock Warranty:
    €323.90
    €398.40
    Login to check your price
    6 pieces in box
    RCP-1000-12-C
    RACK 19" power supply 720W 12V 60A
    Availability: Out of stock
    Net price:
    €323.90
    6 pieces in box
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    RCP-1000-24-C
    RACK 19" power supply 1000W 24V 40A
    Out of stock Warranty:
    €323.90
    €398.40
    Login to check your price
    6 pieces in box
    RCP-1000-24-C
    RACK 19" power supply 1000W 24V 40A
    Availability: Out of stock
    Net price:
    €323.90
    6 pieces in box
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    RCP-1000-48-C
    RACK 19" power supply 1000W 48V 21A
    Out of stock Warranty:
    €323.90
    €398.40
    Login to check your price
    6 pieces in box
    RCP-1000-48-C
    RACK 19" power supply 1000W 48V 21A
    Availability: Out of stock
    Net price:
    €323.90
    6 pieces in box
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    RCP-1UI
    case 1U with IEC inlet to RACK 19"
    Out of stock Warranty:
    €270.80
    €333.08
    Login to check your price
    1 pieces in box
    RCP-1UI
    case 1U with IEC inlet to RACK 19"
    Availability: Out of stock
    Net price:
    €270.80
    1 pieces in box
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    RCP-1UT
    case 1U with terminal block to RACK 19"
    Out of stock Warranty:
    €270.80
    €333.08
    Login to check your price
    1 pieces in box
    RCP-1UT
    case 1U with terminal block to RACK 19"
    Availability: Out of stock
    Net price:
    €270.80
    1 pieces in box

Description

RCP-1000 is a 1 KW single output rack mountable front end AC/DC power supply This series operates for 90~264VAC input voltage and offers the models with the DC output mostly demanded from the industry. Each model is cooled by the built-in DC fan with fan speed control, working for the temperature up to 60°C.

RCP-1000 provides vast design flexibility by equipping various built-in functions such as the output programming, active current sharing (up to 8000W via three 19” rack shelves, RCP-1U), remote control, auxiliary power, alarm signal, etc.

Available models:

  • 12V: RCP-1000-12
  • 24V: RCP-1000-24
  • 48V: RCP-1000-48



Technical Specification

RCP-1000: 720~1008W DETAILS

Model Output Tolerance Ripple & noise Efficiency Dimension
RCP-1000-12 12V, 0~60A +/-1% 150mV 81% 295x127x41mm
RCP-1000-24 24V, 0~40A +/-1% 200mV 87% 295x127x41mm
RCP-1000-48 48V, 0~21A +/-1% 300mV 89% 295x127x41mm



RCP-1U: Rack system for RCP-1000 DETAILS

Model Description Dimension
RCP-1UI 1U rack system with AC inlet 350.8x483.6x44mm
RCP-1UT 1U rack system with terminal block 350.8x483.6x44mm
