new
- Standard 2"x1"DIP package
- Wide input voltage range 9~75Vdc (8:1)
- Operating temperature range -40 ~ +90 ℃
- No minimum load required
- Compliance with BS EN/EN55032 Class A
- Efficiency of up to 86%
- Protections: Short-circuit / Overload / Over-voltage / Under-voltage
- 3KVdc input/output isolation
- Remote ON/OFF control (on demand, MOQ)
- 3 year warranty
High price? Log in and buy cheaper
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSKA15W8-03DC/DC module 15W 9~75V/ 3.3V 4AOut of stock Warranty: €16.10€19.80Login to check your price SKA15W8-03DC/DC module 15W 9~75V/ 3.3V 4AAvailability: Out of stockNet price:€16.10 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSKA15W8-05DC/DC module 15W 9~75V/ 5V 3AOut of stock Warranty: €16.10€19.80Login to check your price SKA15W8-05DC/DC module 15W 9~75V/ 5V 3AAvailability: Out of stockNet price:€16.10 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSKA15W8-09DC/DC module 15W 9~75V/ 9V 1.666AOut of stock Warranty: €16.10€19.80Login to check your price SKA15W8-09DC/DC module 15W 9~75V/ 9V 1.666AAvailability: Out of stockNet price:€16.10 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSKA15W8-12DC/DC module 15W 9~75V/ 12V 1.25AOut of stock Warranty: €16.10€19.80Login to check your price SKA15W8-12DC/DC module 15W 9~75V/ 12V 1.25AAvailability: Out of stockNet price:€16.10 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSKA15W8-15DC/DC module 15W 9~75V/ 15V 1AOut of stock Warranty: €16.10€19.80Login to check your price SKA15W8-15DC/DC module 15W 9~75V/ 15V 1AAvailability: Out of stockNet price:€16.10 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSKA15W8-24DC/DC module 15W 9~75V/ 24V 0.625AOut of stock Warranty: €16.10€19.80Login to check your price SKA15W8-24DC/DC module 15W 9~75V/ 24V 0.625AAvailability: Out of stockNet price:€16.10
Description

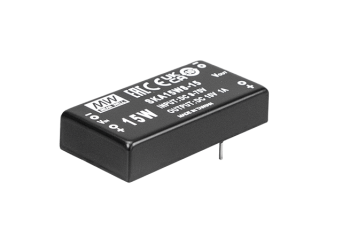

SKE15W8 and DKE15W8 series are 15W isolated and regulated module type DC-DC converter with DIP 2"x1" package. It features international standard pins, a high efficiency up to 86%, wide working temperature range -40~+90℃ , 3KVdc I/P-O/P isolation voltage, compliance to BS EN/EN55032 radiated Class A without additional components, continuous-mode short circuit, overload, over voltage, input under voltage protection etc. The models account for 9~75Vdc 8:1 ultra-wide input range, and various output voltage, 3.3V/5V/9V/12V/15V/24V for single output and ±5V/±12V/±15V for dual outputs, which are suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.
Technical Specification
- MEAN WELL SKE15W8: 15W DC/DC converter Manufacturer's documentation (specifications, others)
. . . . . . . . . . . . . . . .
| Model | Input | Output | Ripple&Noise | Dimension |
| SKA15W8-03 | 9~75V | 3.3V, 4A | 150mV | 50.8x25.4x11.2mm |
| SKA15W8-05 | 9~75V | 12V, 3A | 150mV | 50.8x25.4x11.2mm |
| SKA15W8-09 | 9~75V | 9V, 1.66A | 150mV | 50.8x25.4x11.2mm |
| SKA15W8-12 | 9~75V | 24V, 1.25A | 150mV | 50.8x25.4x11.2mm |
| SKA15W8-15 | 9~75V | 15V, 1A | 150mV | 50.8x25.4x11.2mm |
| SKA15W8-24 | 9~75V | 24V, 0.63A | 150mV | 50.8x25.4x11.2mm |
