- DIP 2"x1" package with industry standard pinout
- 8:1(9~75Vdc) ultra-wide input range
- Operating temperature range -40 ~ +90℃
- No minimum load required
- Comply to BS EN/EN55032 radiated Class A without
additional components - High efficiency up to 88%
- Protections: Short circuit (Continuous) / Overload / Over voltage / UVLO
- 3KVdc I/O isolation
- Remote ON/OFF control (By request)
- 3 years warranty
Discounted prices and exact stock levels are visible once you have logged in to the online shop.
High price? Log in and buy cheaper
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
SKMW20W8
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSKMW20W8-03DC/DC module 20W 9~75V/ 3.3V 4.5AOut of stock Warranty: €27.60€33.95Login to check your price SKMW20W8-03DC/DC module 20W 9~75V/ 3.3V 4.5AAvailability: Out of stockNet price:€27.60 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSKMW20W8-05DC/DC module 20W 9~75V/ 5V 4AOut of stock Warranty: €27.60€33.95Login to check your price SKMW20W8-05DC/DC module 20W 9~75V/ 5V 4AAvailability: Out of stockNet price:€27.60 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSKMW20W8-12DC/DC module 20W 9~75V 12V 1.67AOut of stock Warranty: €27.60€33.95Login to check your price SKMW20W8-12DC/DC module 20W 9~75V 12V 1.67AAvailability: Out of stockNet price:€27.60 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSKMW20W8-15DC/DC module 20W 9~75V/ 15V 1.333AOut of stock Warranty: €27.60€33.95Login to check your price SKMW20W8-15DC/DC module 20W 9~75V/ 15V 1.333AAvailability: Out of stockNet price:€27.60
Description

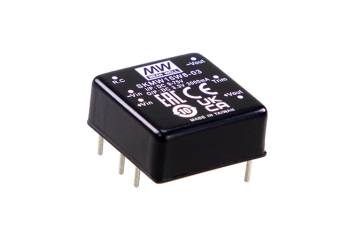

SKMW20W8and DKMW20W8 series are 20W isolated and regulated module type DC-DC converter with DIP 2"x1" package. It features international standard pins, a high efficiency up to 88%, wide working temperature range -40~+90℃ , 3KVdc I/P-O/P isolation voltage, compliance to BS EN/EN55032 radiated Class A without additional components, continuous-mode short circuit, overload, over voltage, input under voltage protection etc. The models account for 9~75Vdc 8:1 ultra-wide input range, and various output voltage, 3.3V/5V/12V/24V for single output and ±5V/±12V/±15V for dual outputs, which are suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.
Technical Specification
- SKMW20W8: 20W DC/DC converter SPECIFICATION
| Model | Input | Output | Ripple&Noise | Dimensions |
| SKMW20W8-03 | 9~75V | 3.3V, 3A | 100mV | 25.4x25.4x11.2mm |
| SKMW20W8-05 | 9~75V | 12V, 2A | 100mV | 25.4x25.4x11.2mm |
| SKMW20W8-12 | 9~75V | 24V, 0.83A | 150mV | 25.4x25.4x11.2mm |
| SKMW20W8-15 | 9~75V | 15V, 0.67A | 150mV | 25.4x25.4x11.2mm |
| SKMW20W8-24 | 9~75V | 24V, 0.42A | 150mV | 25.4x25.4x11.2mm |
