- 8:1(9~75Vdc) ultra-wide input range
- No minimum load required
- SIP6 package with industry standard pinout
- Operating temperature range -40 ~ +95℃
- Comply to BS EN/EN55032 radiated Class A without additional components
- High efficiency up to 80%
- Protections: Short circuit (Continuous) / Overload / UVLO
- 1.5KVdc I/O isolation
- 3 years warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
High price? Log in and buy cheaper
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
SPA01W8
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSPA01W8-03DC/DC module 1W 9~75V/ 3.3V 0.3AOut of stock Warranty: €6.60€8.12Login to check your price SPA01W8-03DC/DC module 1W 9~75V/ 3.3V 0.3AAvailability: Out of stockNet price:€6.60 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSPA01W8-05DC/DC module 1W 9~75V/ 5V 0.2AOut of stock Warranty: €6.60€8.12Login to check your price SPA01W8-05DC/DC module 1W 9~75V/ 5V 0.2AAvailability: Out of stockNet price:€6.60 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSPA01W8-09DC/DC module 1W 9~75V/ 9V 0.111AOut of stock Warranty: €6.60€8.12Login to check your price SPA01W8-09DC/DC module 1W 9~75V/ 9V 0.111AAvailability: Out of stockNet price:€6.60 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSPA01W8-12DC/DC module 1W 9~75V/ 12V 0.083AOut of stock Warranty: €6.60€8.12Login to check your price SPA01W8-12DC/DC module 1W 9~75V/ 12V 0.083AAvailability: Out of stockNet price:€6.60 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSPA01W8-15DC/DC module 1W 9~75V/ 15V 0.076AOut of stock Warranty: €6.60€8.12Login to check your price SPA01W8-15DC/DC module 1W 9~75V/ 15V 0.076AAvailability: Out of stockNet price:€6.60 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSPA01W8-24DC/DC module 1W 9~75V/ 24V 0.042AOut of stock Warranty: €6.60€8.12Login to check your price SPA01W8-24DC/DC module 1W 9~75V/ 24V 0.042AAvailability: Out of stockNet price:€6.60
Description

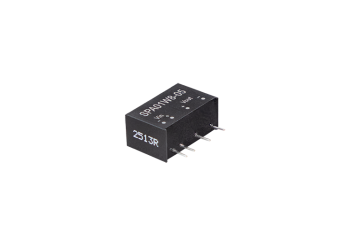

SPA01W8 series is 1W isolated and regulated module type DC-DC converter with SIP6 package. It features international standard pins, a high efficiency up to 80%, wide working temperature range -40~+95C, 1.5KVdc I/P-O/P isolation voltage, compliance to BS EN/EN55032 radiated class A without additional components, overload and continuous-mode short circuit protection, etc. The models account for 9~75Vdc 8:1 ultra-wide input range, and various output voltage, from 3.3V to 24V for single output, which are suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.
Technical Specification
SPA01W8: 1W SIP package ultra-wide input DC-DC regulated converter → Manufacturer documentation (specification, reports, others)
| Model | Input voltage | Output voltage | Output current | Efficiency | Dimension (LxWxH) |
| SPA01W8-03 | 9~75VDC | 3.3VDC | 0~300mA | 77% | 17.4x7.75x11.1mm |
| SPA01W8-03 | 9~75VDC | 5VDC | 0~200mA | 78% | 17.4x7.75x11.1mm |
| SPA01W8-09 | 9~75VDC | 9VDC | 0~111mA | 80% | 17.4x7.75x11.1mm |
| SPA01W8-12 | 9~75VDC | 12VDC | 0~83mA | 78% | 17.4x7.75x11.1mm |
| SPA01W8-15 | 9~75VDC | 15VDC | 0~67mA | 80% | 17.4x7.75x11.1mm |
| SPA01W8-24 | 9~75VDC | 24VDC | 0~42mA | 76% | 17.4x7.75x11.1mm |
