new
- DALI-2 DT6(Dimming) or DT8 (Tunable
white/RGBW) control available - Constant voltage PWM style output with 1 to 4 channels
- Standby power consumption <0.5W
- Flicker free, complying with CE ErP directive
- Plastic housing with class Il and PFC design
- Function options: 3 in 1dimming/DALI-2+PUSH Dimming
- Minimum dimming level 0.1%(DALI-2)
- Cooling by free air convection
- 5 years warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
High price? Log in and buy cheaper
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSPWM-75-12LED driver 75.6W 12V 6.3AIn delivery Warranty: €22.50€27.68Login to check your price SPWM-75-12LED driver 75.6W 12V 6.3AAvailability: In deliveryNet price:€22.50 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSPWM-75-12DA2LED driver 75.6W 12V 6.3AIn delivery Warranty: €25.70€31.61Login to check your price SPWM-75-12DA2LED driver 75.6W 12V 6.3AAvailability: In deliveryNet price:€25.70 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSPWM-75-12DA2QLED driver 75.6W 12V 6.3AIn stockWarranty: €30.50€37.52Login to check your price SPWM-75-12DA2QLED driver 75.6W 12V 6.3AAvailability:In stockNet price:€30.50 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSPWM-75-24LED driver 76.8W 24V 3.2AIn delivery Warranty: €22.50€27.68Login to check your price SPWM-75-24LED driver 76.8W 24V 3.2AAvailability: In deliveryNet price:€22.50 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSPWM-75-24DA2LED driver 76.8W 24V 3.2AIn stockWarranty: €25.70€31.61Login to check your price SPWM-75-24DA2LED driver 76.8W 24V 3.2AAvailability:In stockNet price:€25.70 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSPWM-75-24DA2QLED driver 76.8W 24V 3.2AIn delivery Warranty: €30.50€37.52Login to check your price SPWM-75-24DA2QLED driver 76.8W 24V 3.2AAvailability: In deliveryNet price:€30.50
Description

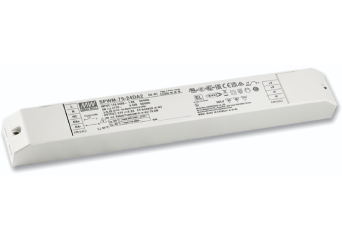

SPWM-75 series is a 75W AC/DC LED driver featuring the constant voltage mode with PWM style output, which is able to maintain the color temperature and the brightness homogeneity when driving all kinds of LED strips. SPWM-75 operates from 100~305VAC and offers models with different rated voltage ranging include 12V and 24V. Thanks to the high efficiency up to 90%,with the fanless design,the entire series is able to operate for -20~+90°C case temperature under free air convention.SPWM-75 is equipped with various function options, such as dimming methodologies with DALI-2 , so as to provide the optimal design flexibility for LED lighting system.
SPWM-75 DALI-2 power supplies are available in the following voltage versions:
12V:
SPWM-75-12 (0-10V dimming, PWM, potentiometer)
SPWM-75-12DA2 (DALI-2, Push Dimming)
SPWM-75-12DA2Q (4 DALI-2 channels, Push Dimming, RGBW+TW)
24V:
SPWM-75-24 (0-10V dimming, PWM, potentiometer)
SPWM-75-24DA2 (DALI-2, Push Dimming)
SPWM-75-24DA2Q (4 DALI-2 channels, Push Dimming, RGBW+TW)
See also other MEAN WELL SPWM power supplies:
SPWM-150
SPWM-240
Technical Specification
- MEAN WELL SPWM-75: RGBW DALI2 LED POWER SUPPLY 75W SEE DETAILS
Model | Output | Regulation | Efficiency | Dimension |
SPWM-75-12 | 12V, 0~10A, 240W | 11V~14V | 89% | 290x38x28.5mm |
SPWM-75-24 | 24V, 0~5A, 240W | 23V~26V | 90% | 290x38x28.5mm |
