- Charger for lead-acid batteries (Gel, flooded and AGM) and Li-ion batteries (lithium iron and lithium manganese)
- Built-in default 3 stage charging curves and programmable curve
- Built-in I2C interface, PMBus protocol (Optional CANBus protocol)
- Universal AC input/ Full range (Withstand 300VAC surge input for 5 seconds)
- Built-in active PFC function
- Forced air cooling by built-in DC fan
- Output voltage and current programmable
- Built-in OR-ing FET
- Active current sharing up to 4800W(2+1)
- Protections: Battery under voltage / Battery no connection / Short circuit / Over voltage / Over temperature
- Optional conformal coating
High price? Log in and buy cheaper
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
RPB-1600
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRPB-1600-12battery charger 1600W 14.4V 100AIn stockWarranty: €394.20€484.87Login to check your price RPB-1600-12battery charger 1600W 14.4V 100AAvailability:In stockNet price:€394.20 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRPB-1600-24battery charger 1600W 28.8V 55AIn stockWarranty: €394.20€484.87Login to check your price RPB-1600-24battery charger 1600W 28.8V 55AAvailability:In stockNet price:€394.20 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRPB-1600-48battery charger 1600W 57.6V 27.5AIn stockWarranty: €394.20€484.87Login to check your price RPB-1600-48battery charger 1600W 57.6V 27.5AAvailability:In stockNet price:€394.20 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRPB-1600-24CANbattery charger 1600W 28.8V 55AOut of stock Warranty: €421.60€518.57Login to check your price RPB-1600-24CANbattery charger 1600W 28.8V 55AAvailability: Out of stockNet price:€421.60
Description

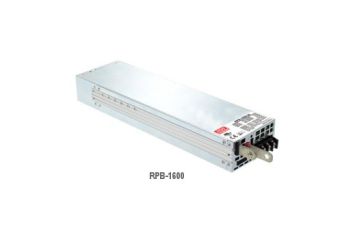

RPB-1600 is a 1.6KW single output AC/DC charger with a high power density up to 25W/inch3. Three embedded charging curves, specifically for the lead-acid batteries, are built into each model. Thanks to the communication protocol, PMBus, and CANBus one spare curve can be further accommodated to fit other types of batteries such as the li-ion batteries. Each model is cooled by the thermostatically controlled fan. Moreover, RPB-1600 provides various protection mechanisms, offering the best safety for diversified types of applications.
Available models:
- 14.4V: RPB-1600-12
- 28.8V: RPB-1600-24
- 57.6V: RPB-1600-48
Technical Specification
RPB-1600: 1600W active PFC DETAILS
| Model | Output | Suggested capacity | Efficiency | Dimension |
| RPB-1600-12 | 14.4V, 100A | 330~1000Ah | 91% | 300x85x41mm |
| RPB-1600-24 | 28.8V, 55A | 180~550Ah | 92.5% | 300x85x41mm |
| RPB-1600-48 | 57.6V, 27.5A | 90~270Ah | 93.5% | 300x85x41mm |
