- 3f input voltage: 3-wire Δ 196-305 VAC or 4-wire Y 340-530 VAC
- parallel operation up to 4 x RST-5000
- built-in active PFC function
- high efficiency up to 91%
- protections: short circuit, overvoltage, overload, thermal
- built-in speed control and fan failure alarm
- the ability to adjust the output voltage with trimmer -2 ~ + 20%
- 20 ~ 120% output voltage control with 1 ~ 6VDC
- control the output current in the range of 20 ~ 100% with 1 ~ 5 VDC
- built-in output voltage compensation function
- built-in on / off function
- auxiliary output 12V / 0.1A
- working temperature -30 ~ + 70 ° C
- compliance with many standards and certificates
- 5-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
High price? Log in and buy cheaper
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
RST-5000
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRST-5000-24switching power supply 4800W 24V 200AOut of stock Warranty: €1,407.00€1,730.61Login to check your price RST-5000-24switching power supply 4800W 24V 200AAvailability: Out of stockNet price:€1,407.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRST-5000-36switching power supply 5000W 36V 138AIn stockWarranty: €1,407.00€1,730.61Login to check your price RST-5000-36switching power supply 5000W 36V 138AAvailability:In stockNet price:€1,407.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRST-5000-48switching power supply 5000W 48V 105AOut of stock Warranty: €1,407.00€1,730.61Login to check your price RST-5000-48switching power supply 5000W 48V 105AAvailability: Out of stockNet price:€1,407.00
Description

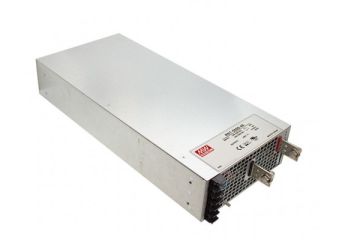

RST-5000 is a 5000W power supply adapted to be supplied with three-phase voltage (delta or star connection). The output voltage is 24V 36V and 48V, adjustable with a potentiometer or an external 1-6VDC signal (the devices also have the function of setting the output current in the range of 20-100% using an external 1-5VDC voltage). In the RST-5000 series, overload protection can be realized as a constant current limit or with a delayed trip after 5 seconds. The models have an active PFC system and an efficiency of up to 91%. The devices can be connected in parallel to increase the power to 20,000W by connecting four RST-5000 models. Additional functions include: voltage compensation in the output circuit, auxiliary output 12V 0.1A, DC OK signaling, fan failure signaling, thermal protection etc. The RST-5000 series power supplies are dedicated to applications that require high power, e.g. in telecommunications, automation, lasers, etc.
Technical Specification
- RST-5000: three-phase parallel power supply 4800~5040W SPECIFICATION
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Dimensions |
| RST-5000-24 | 24V, 0~200A | +/-1% | 150mV | 89% | 460x211x83.5mm |
| RST-5000-36 | 36V, 0~138A | +/-1% | 200mV | 90% | 460x211x83.5mm |
| RST-5000-48 | 48V, 0~105A | +/-1% | 200mV | 91% | 460x211x83.5mm |
