P1J DC adapters
Price from €0.50 Net price
If placed an order by 3 p.m., the package will be shipped the same day In stock
|
NOTE: Series is phased-out by the manufacturer and avaliable while stock lasts. As a replacement we suggest NGE12I series. |
Manufacturer: MEAN WELL
- 2 pole EURO plug , Class II power unit
- Medical safety approved (2 x MOPP) according to EN60601-1/-1-11
- Extremely low leakage current
- Energy efficiency Level VI and meet COC version 5( except 5~9V for Level V)
- -25~+60°C wide range working temperature
- Protections: Short circuit / Overload / Over voltage
- LED indicator for power on
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Price from €10.30 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use onlyModels
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddGSM06E05-P1Jwall plug-in power supply EU 6W 5V 1.2AOut of stock Warranty: €10.30€12.67Login to check your price GSM06E05-P1Jwall plug-in power supply EU 6W 5V 1.2AAvailability: Out of stockNet price:€10.30 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddGSM06E24-P1Jwall plug-in power supply EU 6W 24V 0.25AOut of stock Warranty: €10.30€12.67Login to check your price GSM06E24-P1Jwall plug-in power supply EU 6W 24V 0.25AAvailability: Out of stockNet price:€10.30
Useful products
Description

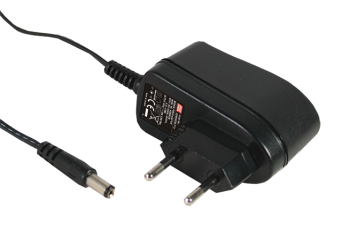

GSM series is a highly reliable, wall-mounted style single-output green medical adaptor series. This product is equipped with a 2-pin (no FG) standard European power plug, adopting the input range from 80VAC to 264VAC. The entire series supplies different output voltages between 5VDC and 48VDC that can satisfy the demands for various kinds of miniature medical devices. The circuitry design meets the international medical standards (2 x MOPP), having an ultra low leakage current, fitting the medical devices in direct electrical contact with the patients.
With the extreme low no-load power consumption below, GSM series is compliant with EU ErP and meet Code of Conduct(CoC) Version 5; the supreme feature allows the adaptor to save the energy when it is either under the operating mode or the standby mode. The entire series utilizes the 94V-0 flame retardant plastic case, providing the double insulation that effectively prevents electrical shock. GSM series is approved with the international medical safety certificates.
Available models:
- 5V: GSM06E05-P1J, GSM18E05-P1J, GSM25E05-P1J, GSM36E05-P1J
- 6V: GSM06E06-P1J
- 7.5V: GSM06E07-P1J, GSM18E07-P1J, GSM25E07-P1J, GSM36E07-P1J
- 9V: GSM06E09-P1J, GSM18E09-P1J, GSM25E09-P1J, GSM36E09-P1J
- 12V: GSM06E12-P1J, GSM18E12-P1J, GSM25E12-P1J, GSM36E12-P1J
- 15V: GSM06E15-P1J, GSM18E15-P1J, GSM25E15-P1J, GSM36E15-P1J
- 18V: GSM06E18-P1J, GSM18E18-P1J, GSM25E18-P1J, GSM36E18-P1J
- 24V: GSM06E24-P1J, GSM18E24-P1J, GSM25E24-P1J, GSM36E24-P1J
- 48V: GSM18E48-P1J, GSM25E48-P1J, GSM36E48-P1J
Technical Specification
-
GSM06E: 5~6W DETAILS
Model Output Tolerance Ripple & noise Efficiency Plug Dimension GSM06E05-P1J 5V, 0~1.2A +/-5% 50mV 68% 2.1Øx5.5Øx11mm 66x32x42.5mm GSM06E06-P1J 6V, 0~1A +/-5% 50mV 74% 2.1Øx5.5Øx11mm 66x32x42.5mm GSM06E07-P1J 7.5V, 0~0.8A +/-5% 80mV 74% 2.1Øx5.5Øx11mm 66x32x42.5mm GSM06E09-P1J 9V, 0~0.66A +/-5% 80mV 76% 2.1Øx5.5Øx11mm 66x32x42.5mm GSM06E12-P1J 12V, 0~0.5A +/-5% 80mV 76% 2.1Øx5.5Øx11mm 66x32x42.5mm GSM06E15-P1J 15V, 0~0.4A +/-5% 120mV 79% 2.1Øx5.5Øx11mm 66x32x42.5mm GSM06E18-P1J 18V, 0~0.33A +/-5% 150mV 80% 2.1Øx5.5Øx11mm 66x32x42.5mm GSM06E24-P1J 24V, 0~0.25A +/-4% 180mV 82% 2.1Øx5.5Øx11mm 66x32x42.5mm
