P1J DC adapters
Price from €0.50 Net price
If placed an order by 3 p.m., the package will be shipped the same day In stock
Manufacturer: MEAN WELL
- Wide input voltage range 85-264 VAC
- Energy efficiency - level VI
- No-load power consumption <0.075W
- Compliant with EISA 2007, EU ErP
- Protection class II
- AC EURO plug 2 pin
- Protections: short circuit, overvoltage and overload protection
- LED operation signaling
- Working temperature -30-70 ° C
- Fully enclosed plastic housing
- Compliance with many standards and certificates
- 3-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Price from €13.20 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddGST36E05-P1Jwall plug-in power supply EU 36W 5V 4.3AOut of stock Warranty: €13.20€16.24Login to check your price GST36E05-P1Jwall plug-in power supply EU 36W 5V 4.3AAvailability: Out of stockNet price:€13.20 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddGST36E09-P1Jwall plug-in power supply EU 36W 9V 3.11AOut of stock Warranty: €13.20€16.24Login to check your price GST36E09-P1Jwall plug-in power supply EU 36W 9V 3.11AAvailability: Out of stockNet price:€13.20 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddGST36E12-P1Jwall plug-in power supply EU 36W 12V 3AIn stockWarranty: €13.20€16.24Login to check your price GST36E12-P1Jwall plug-in power supply EU 36W 12V 3AAvailability:In stockNet price:€13.20 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddGST36E24-P1Jwall plug-in power supply EU 36W 24V 1,5AIn stockWarranty: €13.20€16.24Login to check your price GST36E24-P1Jwall plug-in power supply EU 36W 24V 1,5AAvailability:In stockNet price:€13.20 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddGST36E48-P1Jwall plug-in power supply EU 36W 48V 0.75AOut of stock Warranty: €13.20€16.24Login to check your price GST36E48-P1Jwall plug-in power supply EU 36W 48V 0.75AAvailability: Out of stockNet price:€13.20
Useful products
Description

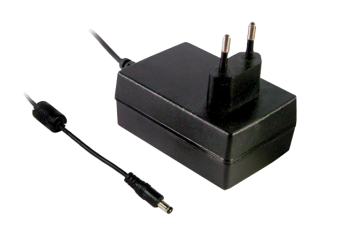

GST series is a highly reliable, wall-mounted style single-output green adaptor series. This product is a class II power unit (no FG), equipped with a 2-Pin standard European AC power plug, adopting the input range from 85VAC to 264VAC. The entire series supplies different models with output voltages ranging between 5VDC and 48VDC that can satisfy the demands for various types of consumer electronic devices.
With the efficiency up to 89% and the extremely low no-load power consumption below 0.075W, GST is compliant with EU ErP, and Code of Conduct(CoC) Version 5 . The supreme feature allows the adaptor to save the energy when ił is either under the operating mode or the standby mode. The entire series utilizes the 94V-0 flame retardant plastic case, providing the double insulation that effectively prevents electrical shock.GST is certified for the international safety regulations.
Available models:
- 5V: GST18E05-P1J, GST25E05-P1J, GST36E05-P1J
- 7.5V: GST18E07-P1J, GST25E07-P1J
- 9V: GST18E09-P1J, GST25E09-P1J, GST36E09-P1J
- 12V: GST18E12-P1J, GST25E12-P1J, GST36E12-P1J
- 15V: GST18E15-P1J, GST25E15-P1J
- 24V: GST18E24-P1J, GST25E24-P1J, GST36E24-P1J
- 48V: GST18E48-P1J, GST25E48-P1J, GST36E48-P1J
Technical Specification
-
GST36E: 22.5~36W DETAILS
Model Output Tolerance Ripple & noise Efficiency Plug Dimension GST36E05-P1J 5V, 0~4.3A +/-5% 90mV 82% 2.1Øx5.5Øx11mm 79x54x33mm GST36E09-P1J 9V, 0~3.11A +/-5% 90mV 86% 2.1Øx5.5Øx11mm 79x54x33mm GST36E12-P1J 12V, 0~3A +/-3% 100mV 87% 2.1Øx5.5Øx11mm 79x54x33mm GST36E24-P1J 24V, 0~1.5A +/-2% 180mV 88.5% 2.1Øx5.5Øx11mm 79x54x33mm GST36E48-P1J 48V, 0~0.75A +/-2% 240mV 90% 2.1Øx5.5Øx11mm 79x54x33mm
