Description

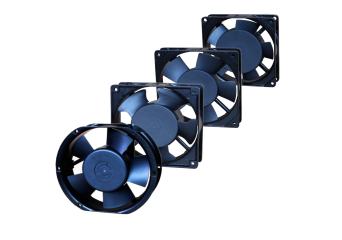

DC / AC fans with a capacity of 15 to 550 m³ / h.
Products available only on request.
Technical Specification
- DC fans (SPECIFICATION)
| Model | Power supply | Efficiency | Dimensions |
| CHA4012BH-10B | 12V/0.10A | 7000±10%RPM 15.88 m³/h |
40x40x10mm |
| CHT4012BH-W20D | 12V/0.18A | 9200±10%RPM 18,65 m³/h |
40x40x20mm |
| CHA6012BH-15D | 12V/0.17A | 5000±10%RPM 38 m³/h |
60x60x15mm |
| CHA6012BH-25C | 12V/0.09A | 4500±10%RPM 39 m³/h |
60x60x25mm |
- AC fans (SPECIFICATION)
| Model | VOltage [V] | Frequency [Hz] | Current [A] | Rotation [RPM] | Efficinecy [m³/h] |
| CHA8025B1H | 110 | 50/60 | 0.13/0.11 | 2550/3000 | 30.5/37.38 |
| 220 | 50/60 | 0.07/0.06 | 2550/3000 | 30.5/37.38 | |
| CHA9225B1H | 110 | 50/60 | 0.13/0.11 | 2450/2850 | 49/63 |
| 220 | 50/60 | 0.07/0.06 | 2500/3000 | 51/65 | |
| CHA12025B1H | 110 | 50/60 | 0.15/0.14 | 2050/2250 | 93/100 |
| 220 | 50/60 | 0.11/0.09 | 2100/2200 | 93/100 | |
| CHA12038B1H | 110 | 50/60 | 0.24/0.20 | 2650/2950 | 139/160 |
| 220 | 50/60 | 0.12/0.10 | 2650/2950 | 139/160 | |
| CHA15050B1H | 110 | 50/60 | 0.63/0.53 | 2600/2950 | 338/355 |
| 220 | 50/60 | 0.25/0.22 | 2600/2600 | 338/355 | |
| CHA22060B1H | 110 | 60 | 0.69 | 2500 | 550 |
| 220 | 50 | 0.30 | 2500 | 550 |
