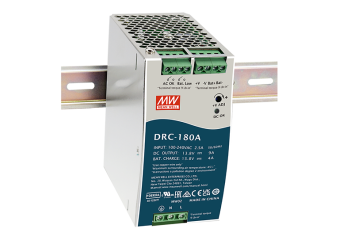

DRC-180A, DRC-180B
DIN rail power supply with UPS function
- input voltage 90-264VAC, 124-370VDC
- active PFC function
- protections: short circuit, overvoltage and overload protection
- protection against discharge and reverse connection of the battery
- adjustable output voltage 13.8V: 12 ~ 15V; 27.6V: 24 ~ 30
- AC OK relay output and low battery charge
- cooling with open air circulation
- working temperature from -30 ~ + 70 ° C
- LED operation signaling
- compliance with many standards and certificates
- 3-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
High price? Log in and buy cheaper
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
DRC-180A, DRC-180B
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDRC-180Apower supply 100W 13.8V 7A, 13.8V 2.5AIn stockWarranty: €79.70€98.03Login to check your price DRC-180Apower supply 100W 13.8V 7A, 13.8V 2.5AAvailability:In stockNet price:€79.70 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDRC-180Bpower supply 100W 27.6V 3.5A, 27.6V 1.25AIn stockWarranty: €79.70€98.03Login to check your price DRC-180Bpower supply 100W 27.6V 3.5A, 27.6V 1.25AAvailability:In stockNet price:€79.70
Description
DRC-180 is a buffer power supply for a DIN rail with a power of 180W, which are available in two versions: DRC-180A (for 12V batteries) and DRC-180B (for 24V batteries). The device has two outputs: one dedicated to connecting the load, the other to charging the battery. DRC-180 is powered by a wide range of input voltages: 90 ~ 264VAC, 127 ~ 370VDC. The PSU is cooled by an open air circulation, the permissible operating temperatures are from -20 ° C to + 70 ° C. Two relay outputs can signal AC network status (AC OK) and low battery charge.
Technical Specification
- DRC-180: DIN rail power supply with UPS function specification
| Model | Output | Tolerance | Rippe&Noise | Efficiency | Power max. | Dimensions |
| DRC-180A | 13.8V, 0~9.0A 13.8V, 0~4A |
+/-1% (ładowanie) |
120mV | 88% | 179W | 63x125.2x115mm |
| DRC-180B | 27.6V, 0~4.5A 27.6V, 0~2A |
+/-1% (ładowanie) |
240mV | 90% | 179W | 63x125.2x115mm |
