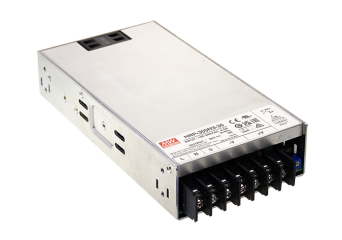

HRP-300N3
Enclosed power supply with PFC and possibility of temporary overload
Manufacturer: MEAN WELL
Manufacturer: MEAN WELL
- input voltage 85-264VAC, 120-370VDC
- built-in active PFC function
- possibility of temporary overload up to 300% of power
- protections: short circuit, overvoltage, overload, thermal
- the ability to adjust the output voltage in the range of +/- 15%
- cooling with a built-in fan
- built-in output voltage drop compensation function
- working temperature -30 ~ + 70 ° C
- compliance with many standards and certificates
- possibility of installation on a DIN rail (using adapters)
- 1U low profile
- 5-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Price from €78.50 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
HRP-300N3
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHRP-300N3-12switching power supply 300W 12V 27AOut of stock Warranty: €78.50€96.56Login to check your price HRP-300N3-12switching power supply 300W 12V 27AAvailability: Out of stockNet price:€78.50 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHRP-300N3-24switching power supply 300W 24V 14AIn stockWarranty: €78.50€96.56Login to check your price HRP-300N3-24switching power supply 300W 24V 14AAvailability:In stockNet price:€78.50 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHRP-300N3-36switching power supply 300W 36V 9AOut of stock Warranty: €78.50€96.56Login to check your price HRP-300N3-36switching power supply 300W 36V 9AAvailability: Out of stockNet price:€78.50 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHRP-300N3-48switching power supply 300W 48V 7AOut of stock Warranty: €78.50€96.56Login to check your price HRP-300N3-48switching power supply 300W 48V 7AAvailability: Out of stockNet price:€78.50
Description
MEAN WELL HRP-300 power supplies have a metal housing and are cooled by free air flow - without the use of an additional fan. The N3 models have a 5-second overload capability of up to 300% of rated power.
Technical Specification
- HRP-300N3: Enclosed power supply with PFC 198~336W SPECIFICATION
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Dimensions |
| HRP-300-12 | 12V, 0~27A | +/-1% | 120mV | 88% | 199x105x41mm |
| HRP-300-24 | 24V, 0~14A | +/-1% | 150mV | 87% | 199x105x41mm |
| HRP-300-36 | 36V, 0~9A | +/-1% | 250mV | 88% | 199x105x41mm |
| HRP-300-48 | 48V, 0~7A | +/-1% | 250mV | 89% | 199x105x41mm |
