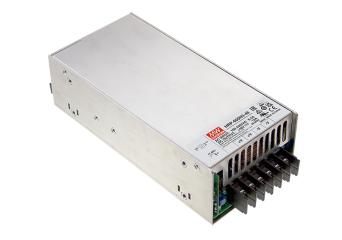

HRP-600N3
Enclosed power supply with PFC and possibility of temporary overload
Manufacturer: MEAN WELL
Manufacturer: MEAN WELL
- input voltage 85-264VAC, 120-370VDC
- built-in active PFC function
- possibility of temporary overload up to 300% of power
- protections: short circuit, overvoltage, overload, thermal
- no-load power consumption <0.75W
- the ability to adjust the output voltage in the range of +/- 15%
- cooling with a built-in fan
- built-in output voltage drop compensation function
- working temperature -30 ~ + 70 ° C
- compliance with many standards and certificates
- possibility of installation on a DIN rail (using adapters)
- 5-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Price from €131.10 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
HRP-600N3
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHRP-600N3-12switching power supply 600W 12V 53AOut of stock Warranty: €131.10€161.25Login to check your price HRP-600N3-12switching power supply 600W 12V 53AAvailability: Out of stockNet price:€131.10 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHRP-600N3-24switching power supply 600W 24V 27AOut of stock Warranty: €131.10€161.25Login to check your price HRP-600N3-24switching power supply 600W 24V 27AAvailability: Out of stockNet price:€131.10 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHRP-600N3-36switching power supply 600W 36V 17.5AOut of stock Warranty: €131.10€161.25Login to check your price HRP-600N3-36switching power supply 600W 36V 17.5AAvailability: Out of stockNet price:€131.10 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHRP-600N3-48switching power supply 600W 48V 13AOut of stock Warranty: €131.10€161.25Login to check your price HRP-600N3-48switching power supply 600W 48V 13AAvailability: Out of stockNet price:€131.10
Description
MEAN WELL HRP-300 power supplies have a metal housing and are cooled by free air flow - without the use of an additional fan. The N3 models have a 5-second overload capability of up to 300% of rated power.
Technical Specification
- HRP-600N3: Enclosed power supply with PFC 396~648W SPECIFICATION
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Dimensions |
| HRP-600-12 | 12V, 0~53A | +/-1% | 120mV | 88% | 218x105x63.5mm |
| HRP-600-24 | 24V, 0~27A | +/-1% | 150mV | 88% | 218x105x63.5mm |
| HRP-600-36 | 36V, 0~17.5A | +/-1% | 200mV | 89% | 218x105x63.5mm |
| HRP-600-48 | 48V, 0~13A | +/-1% | 240mV | 89% | 218x105x63.5mm |
