NSP-1600

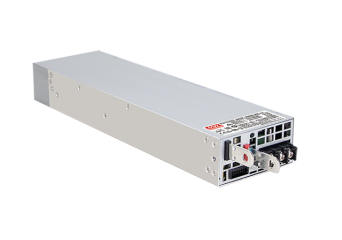

High power power supply NSP-1600

Manufacturer: MEAN WELL
Manufacturer: MEAN WELL
  • input voltage 90-264VAC, 127-370VDC
  • built-in active PFC function
  • protections: short circuit, overvoltage, overload, thermal
  • the ability to adjust the output voltage with a potentiometer
  • regulation of the output voltage with external voltage in the range of 40-125%
  • cooling with a built-in fan
  • built-in output voltage compensation function
  • built-in remote on / off function
  • working temperature -20 ~ + 70 ° C
  • compliance with many standards and certificates
  • 5-year warranty

Discounted prices and exact stock levels are visible after logging in to the e-shop.

Price from €360.70 Net price

High price? Log in and buy cheaper

In stock

Place the order by 12:00, the package will be shipped on the same day

Free shipping from €300

See 4 models

Promocja cenowa na model HDR-15-5

Models

  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    NSP-1600-12
    switching power supply 1500W 12V 125A
    In stock
    Warranty:
    €360.70
    €443.66
    Login to check your price
    6 pieces in box
    NSP-1600-12
    switching power supply 1500W 12V 125A
    Availability:
    In stock
    Net price:
    €360.70
    6 pieces in box
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    NSP-1600-24
    switching power supply 1600W 24V 67A
    In stock
    Warranty:
    €360.70
    €443.66
    Login to check your price
    6 pieces in box
    NSP-1600-24
    switching power supply 1600W 24V 67A
    Availability:
    In stock
    Net price:
    €360.70
    6 pieces in box
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    NSP-1600-36
    switching power supply 1600W 36V 44.5A
    Out of stock Warranty:
    €360.70
    €443.66
    Login to check your price
    6 pieces in box
    NSP-1600-36
    switching power supply 1600W 36V 44.5A
    Availability: Out of stock
    Net price:
    €360.70
    6 pieces in box
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    NSP-1600-48
    switching power supply 1600W 48V 33.5A
    In stock
    Warranty:
    €360.70
    €443.66
    Login to check your price
    6 pieces in box
    NSP-1600-48
    switching power supply 1600W 48V 33.5A
    Availability:
    In stock
    Net price:
    €360.70
    6 pieces in box

Description

MEAN WELL NSP-1600 is a single-output AC / DC power supply with a 1U profile and high energy density. All models of the NSP series are cooled by a thermostatically controlled fan. The output voltage can be adjusted with a potentiometer or with an external 1 ~ 5VDC voltage. The power supplies have a remote on / off function. All models have a 5-year warranty.

Technical Specification

  • NSP-1600: high power power supply NSP-1600 1500~1608W SPECIFICATION
Model Output Tolerance Ripple&Noise Efficiency Dimensions
NSP-1600-12 12V, 0~125A +/-1% 150mV 89% 300x85.4x41mm
NSP-1600-24 24V, 0~67A +/-1% 200mV 91.5% 300x85.4x41mm
NSP-1600-36 36V, 0~44.5A +/-1% 250mV 92% 300x85.4x41mm
NSP-1600-48 48V, 0~33.5A +/-1% 300mV 93% 300x85.4x41mm
